IBOX-602P-IP66

• NVIDIA® Jetson Orin™ NX 16GB
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)

• NVIDIA® Jetson Orin™ NX 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

Platform Security Controller (PSC), Security Engine (SE)

1 x Intel® 2.5GbE, 1 x SoM Built-in GbE

The self-reset mechanism for unresponsive system

1 x HDMI Type-A output supports 4K resolution (with a cover)

1 x HD audio from the HDMI®

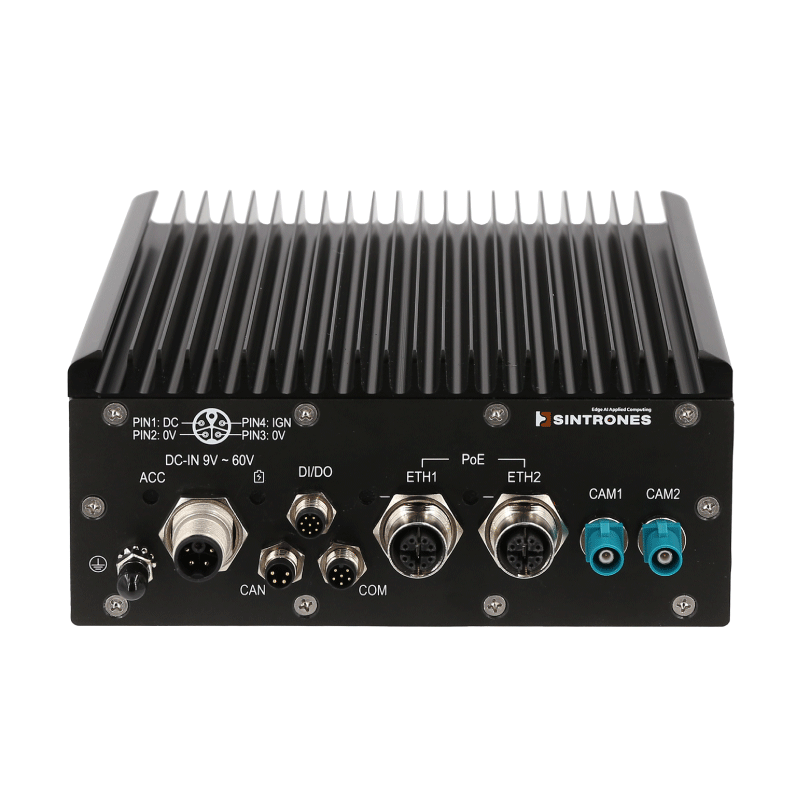

2 x M12 X-coded connectors

2 x PoE PSE Class 3 (15 watts)

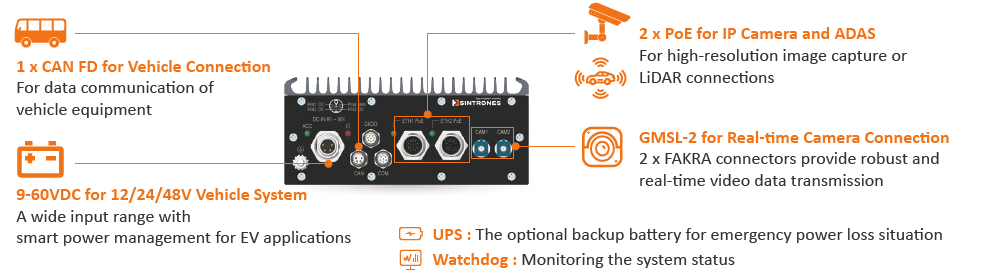

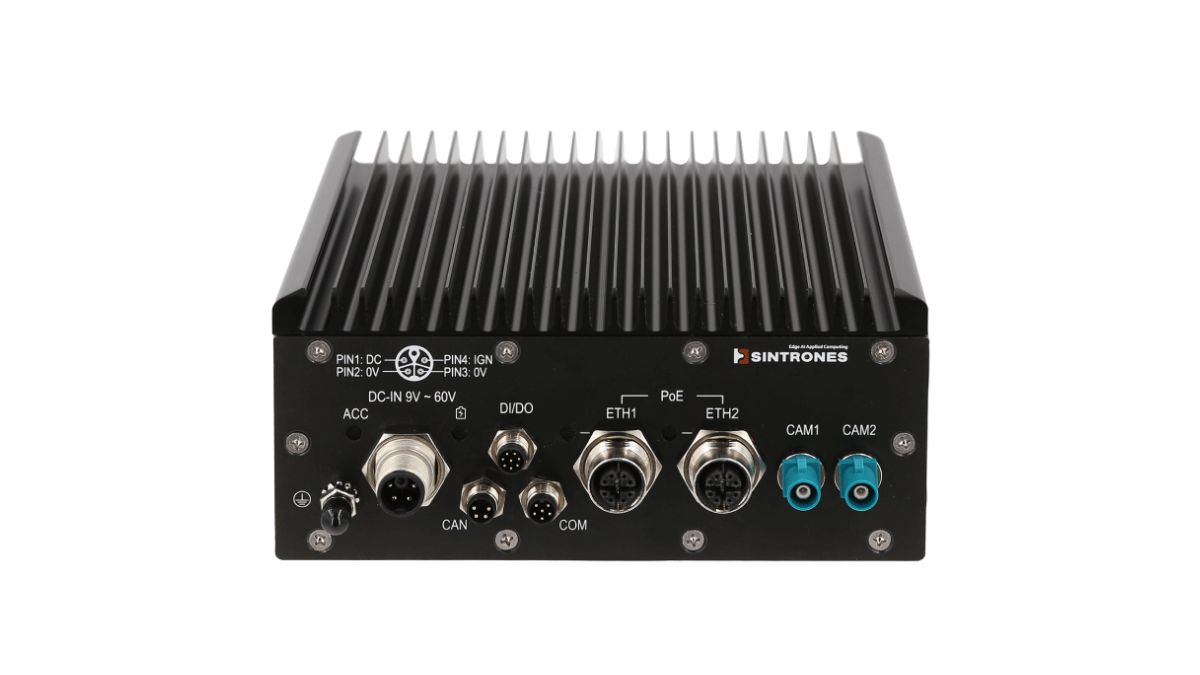

2 x GMSL-2 via FAKRA connectors

1 x CAN FD via M8 connector

1 x USB 3.2 (with a cover)

3 x DI, 4 x DO (12VDC/100mA) via M8 connector

1 x RS-232/422/485 via M8 connector

1 x USB Type-C for System Recovery (Device only)

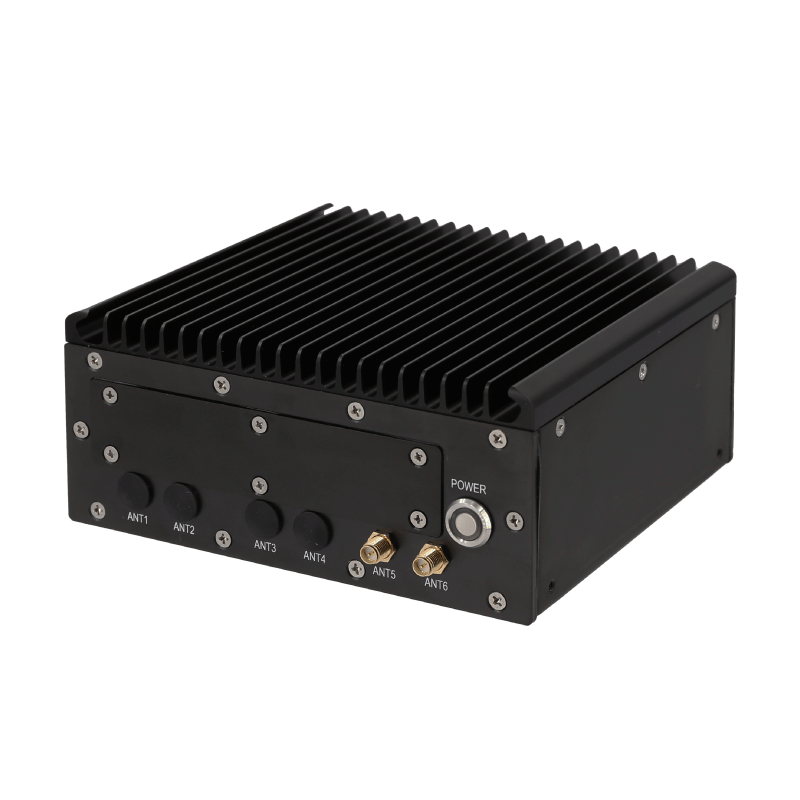

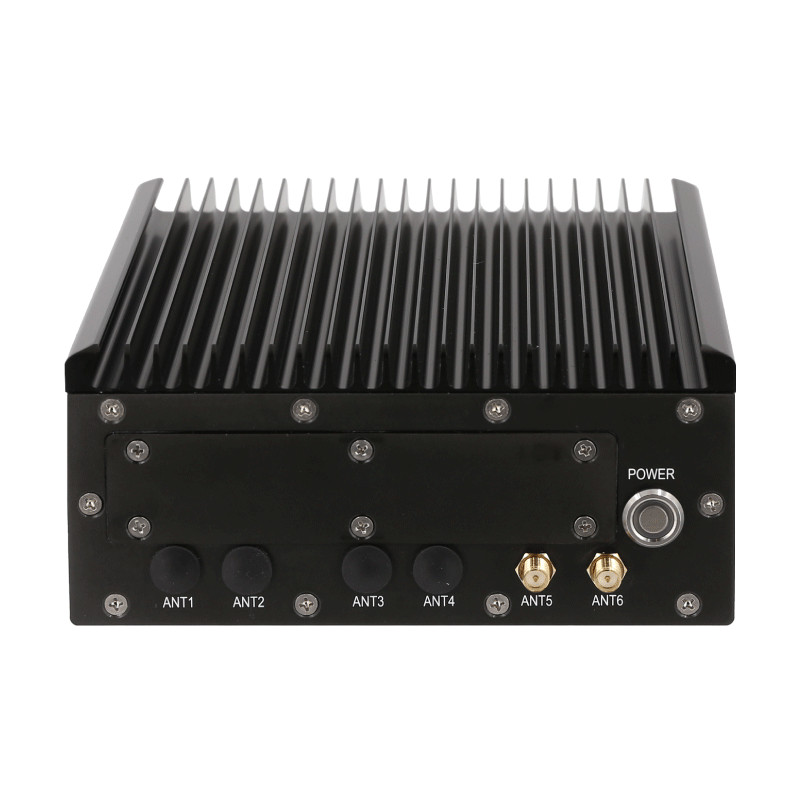

6 x Antenna holes with protection caps

• 1 x M.2 3042/52 Key B supports WWAN w/ Dual Nano SIM
• 1 x M.2 2230 Key E supports Wi-Fi/BT

1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP)

NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools

DC 9V-60V for 12/24/48V via M12 K-coded

OCP, OVP, Surge Protection, and Reversed Polarity Protection

Supports Smart Power Managemen

High-capacity coin cell battery for RTC

Backup battery for system power backup

-25°C ~ 60°C (-13°F ~ 140°F), with SSD, ambient w/ air flow 0.6m/s (ONX16 model)
-25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ air flow 0.6m/s (ONX8 model )

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G – Method 514.6, Procedure I, Category 4

MIL-STD-810G – Method 516.6, Procedure I, trucks and semi-trailers=15G (11ms) with SSD

CE, FCC Class A, UKCA, E-mark, EN50155, EN45545-2 (R25)

Aluminum alloy

Fanless passive cooling design

Wall-mounting

1.78 kg

150 (L) x 138 (W) x 66 (H) mm (6.0 x 5.5 x 5.6 inch)

IP66

IBOX-602P-IP66-ONX16｜NVIDIA® Jetson Orin™ NX NX 16GB / 2 x PoE / 2 x GMSL-2 / IP66

IBOX-602P-IP66-ONX8｜NVIDIA® Jetson Orin™ NX NX 8GB / 2 x PoE / 2 x GMSL-2 / IP66

NVIDIA® Jetson Orin™ NX NX SoM w/ 2x LAN / 2x PoE / 2x GMSL-2 / 1x CAN FD / DC 9-60V / IP66 Edge AI Computer

Made in Taiwan

M.2 2280 NVMe SSD 240GB / 480GB / 960GB

*The NVMe SSD is a mandatory accessory for this product.

M.2 2230 Wi-Fi Module

M.2 3042/52 WWAN Modem

M.2 2242 GPS Module

BAT-2300v2 (Operating Temp. : -10°C ~ 50°C (14°F ~ 122°F))

60W 100-240VAC to 12VDC Power Adapter

SINTRONES – VCM-1020G2 Series (Sony IMX390 2MP, 63.9°, GMSL-2, 63.9°/120°/186°)
Stereolabs – ZED X Stereo
e-con System – STURDeCAM25
oToBrite – otoCAM223
oToBrite – otoCAM260

**BSP versions may vary depending on supported GMSL cameras.
