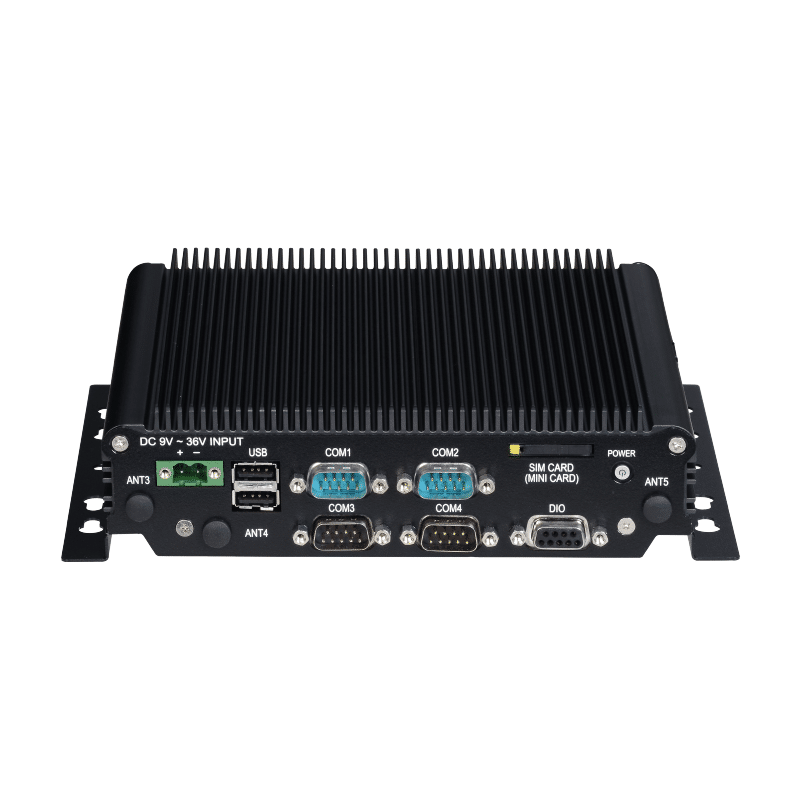

SBOX-2622

Industrial Embedded Computer for Industrial Automation

11th Generation Intel® Core™ i7 Processors (i7-1185G7E) with 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/ 4x COM/ DC 9-36V Fanless Box PC

產品階段：Available
線上詢價 Datasheet

產品特色

  • 11th Generation Intel® Core™ i7 Processors (i7-1185G7E)
  • Triple Display Output (2x HDMI® / VGA)
  • Wireless Support 5G/LTE, Wi-Fi / Bluetooth (by optional module)
  • Wide Range Operating Temperature -30°C~60°C
  • 4x RS-232/422/485
  • 4x DI/ 4 x DO (5V/100mA)
  • 9~36VDC Power Input

產品介紹



The SBOX-2622 is powered by 11th Generation Intel® Core™ i7 Processors (i7-1185G7E) with supporting triple display output (2 x HDMI® / VGA); it delivers high-performance computing and real-time capabilities for critical Industrial loT deployment. The SBOX-2622 has the newest Intel Iris® Xe Graphics and T5N technology, making it a perfect solution for Factory Automation, Service Robots, Cellular V2X, Smart Retail, and any AIoT/Industry 4.0 applications. Also, this SBOX Fanless Box PC can be applied to industrial automation, digital signage, outdoor video surveillance, and automatic guided vehicle (AGVs). The solutions can tackle all outdoor applications and extreme weather conditions.

SYSTEM

Processor

11th Generation Intel® Core™ i7 Processors (i7-1185G7E) up to 2.80 GHz*
11th Generation Intel® Core™ i5 Processors (i5-1145G7E) up to 2.60 GHz
11th Generation Intel® Core™ i3 Processors (i3-1115G4E) up to 3.00 GHz
Intel® Celeron® 6305E Processor 1.80 GHz

*CPU TDP is configured at 15W as the default setting

Memory

1 x DDR4 SO-DIMM up to 32 GB

Watchdog

1 ~ 255 Level Reset

TPM

2.0

ATA

1 x Intel i210-AT Gigabit Ethernet

GRAPHICS

Graphics Engine

Intel® Iris® Xe Graphics (for Core™ i7/i5 SKU)
Intel® UHD Graphics (for i3/Celeron™ 6305E SKU)

HDMI®

2 x HDMI® 2.0b

DVI-D

1 (Use only with Single Link DVI Cables)

AUDIO

Mic-in

1

Line-out

1

ETHERNET

LAN Chipset

1 x Intel® 1255-LM supports AMT for i5 & i7
1 x lntel® 1210-AT Gigabit Ethernet

LAN

RJ-45 ports for 1 x 2.5GbE, 1GbE

I/O

Serial Port

4 x RS-232/422/485

USB

2 x USB 3.0
2 x USB 2.0 Ports
(Optional additional 2 x USB 2.0)

GPIO

4 x DI

4 x DO (5V/100mA)

SIM Socket

2

Antenna

5 x SMA Type External Antenna Pre-cut Hole

STORAGE

SSD/HDD

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD

M.2

1 x M.2 2280 Key M slot
(Support NVMe and SATA SSD w/ auto-detection)

EXPANSION

Mini PCI Express

1 x mPCle slot supports (USB 2.0 interface) w/ 1 x pin eject SIM card

M.2

1 x M.2 3042/52 Key B for 5G/LTE modem wI 2 x SIM Card Sockets Supported Onboard
1 x M.2 2230 Key A-E for Wi-Fi + Bluetooth

POWER

Power Input

9-36VDC Input w/ Reverse Polarity OCP and OVP Protection

MECHANICAL

Dimension

210 (L) x 171 (W) x 50 (H) mm
(Wall Mount Bracket Included)

Weight

1,750g

Construction

Aluminum Alloy

Mounting

Wall-mount (Optional VESA and Din Rail Mounting Kit)

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30ºC ~ 60ºC, ambient w/ 0.6m/s airflow

Storage Temp.

-40ºC ~ 85ºC

CERTIFICATION

Certification

CE, FCC Class A

OPERATIONAL SYSTEM

Windows

Windows 10 IoT 2021 LTSC 64-bit,
Windows 11 IoT 64-bit

Linux

Ubuntu 20.04.6/22.04 LTS 64-bit

ORDERING INFORMATION

Model No.

SBOX-2622-i7, SBOX-2622-i5, SBOX-2622-i3, SBOX-2621-C1

Description

11th Generation Intel® Core™ i7 Processors (i7-1185G7E) w/ 2x LAN/ 2x HDMI® 2.0b/ 1x DVI-D/4x COM/ DC 9-36V Input/ Fanless Box PC

State of Origin

Taiwan

OPTIONAL ACCESSORIES

DRAM

SO-DIMM DDR4 3200, 8GB~32GB (-40°~85°C)

SATA SSD

M.2 2280 Key B+M SATA SSD TLC 64GB~1TB (-40°~85°C)

NVMe SSD

M.2 2280 Key M NVMe TLC 256GB~1TB (-40°~85°C)

Wi-Fi / Bluetooth

M.2 2230 Key A+E Module

5G /LTE

M.2 3042/3052 Key B Module

Mounting kit

DIN Rail/VESA kit
