車載電腦

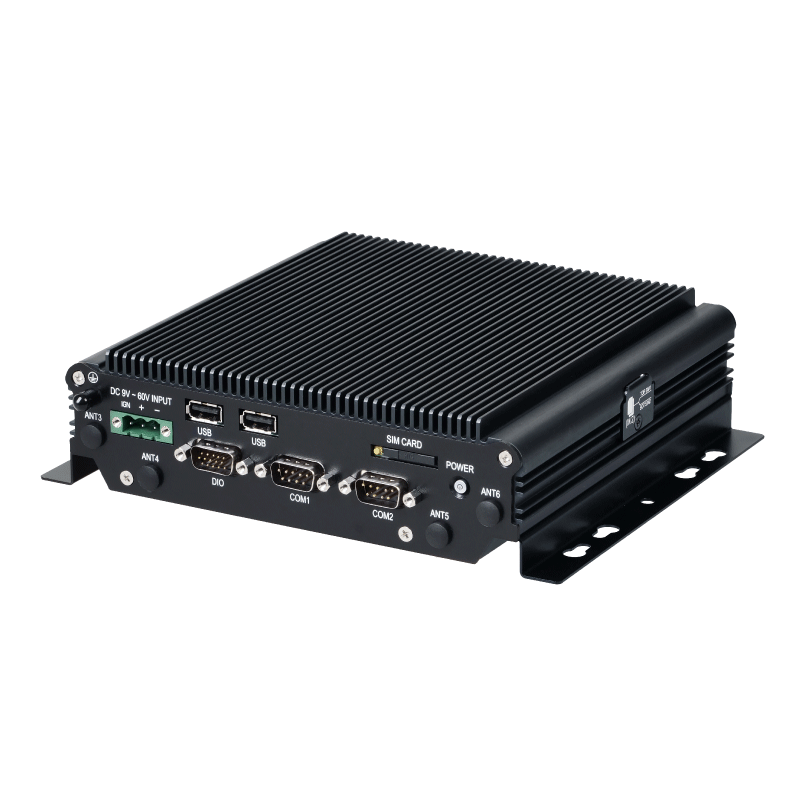

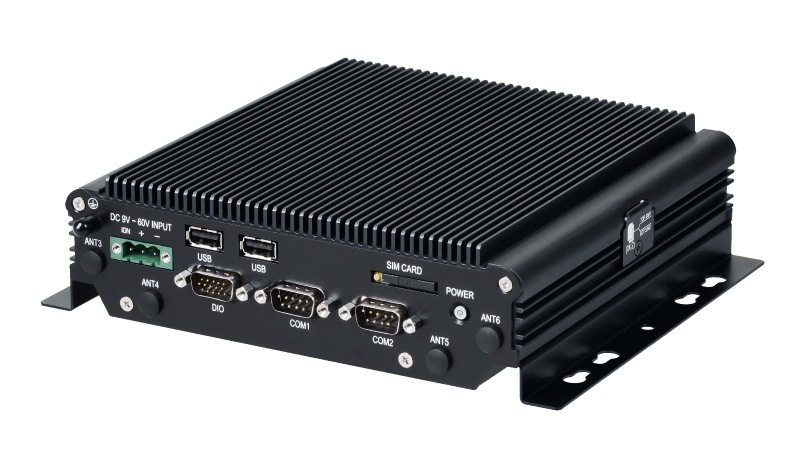

VBOX-3122

• Intel® 11th Gen Core™ i7-1185G7E up to 2.8 GHz*
• Intel® 11th Gen Core™ i5-1145G7E up to 2.6 GHz*
• Intel® 11th Gen Core™ i3-1115G4E up to 3.0 GHz*
• Intel® Celeron® 6305E 1.8 GHz
*CPU TDP is configured at 15W as the default setting.

• 1 x DDR4-3200 SO-DIMM up to 32 GB

• Intel® Iris® Xe / UHD Graphics (for Celeron® 6305E only)

• 1 x Intel® 2.5GbE
• SKU 1 x Intel® Gigabit Ethernet

• 1 ~ 255 Level Reset

• TPM 2.0

• 2 x RS-232/422/485

• 2 x USB 3.2 Gen 2, 2 x USB 2.0

• 2 x RJ-45 Ports for 1 x 2.5GbE and 1 x GbE

• 2 x HDMI® 2.0b, 1 x DVI-D
*Only supports Single-Link DVI-D cables

• 4 x DI (9~60V) / 4 x DO (5V / 100mA)
• 2 x Analog Input (0~60V w/0.5V accuracy)

• 1 x MIC-in, 1 x Line-out

• 1 x M.2 3042/52 Key B Slot w/ 2 x SIM Card Sockets for WWAN expansion
• 1 x M.2 2230 Key E slot for Wi-Fi/BT module
• 1 x mPCIe Full-size slot supports USB 3.0 and USB 2.0 w/ SIM card slot
• 1 x mPCIe Full-size Slot supports PCIe 3.0 x1 and USB 2.0

• 6 x Pre-cut Hole for External SMA Antenna

• Windows 10/11 IoT 64-bit, Ubuntu 20.04/22.04 LTS 64-bit

• -40 ~ 70ºC (with SSD), ambient w/ 0.6m/s airflow

• -40 ~ 80°C

• 10% RH – 90% RH (non-condensing)

• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G, Method 514.6, Procedure I, Cat.4, DUT Operating

• MIL-STD-810G, Method 516.6, Procedure I, Trucks and semitrailers= 15G (11ms) with SSD, DUT Operating

• 1 x SATA Connector for 2.5″ SATA HDD/SSD
• 1 x M.2 2280 Key M for NVMe SSD

• DC 9 – 60V Input

• Ignition Management for Variety Vehicle

• Power off delay time setting by BIOS and SINTRONES utility

• Internal battery Kit for about 10 mins operating
*UPS backup time varies depending on actual overall system power consumption.
*Operating temperature will be 0~55°C with the battery kit.
Patent No. : M447854 – Build-in Battery

• Aluminum Alloy

• Wall-mount, VESA-mount, Din Rail Mounting Kit

• 1,800g

• 210 x 171 x 54 mm (w/ mounting kit)

VBOX-3122-zz
zz=i7=Core™ i7-1185G7E, zz=i5=Core™ i5-1145G7E, zz=i3=Core™ i3-1115G4E; zz=C1=Celeron® 6305E

Intel® 11th Gen Core™ i7 / i5 / i3 / Celeron® Processor with 2 x LAN/ 2 x HDMI®/ 1 x DVI/ 2 x COM/ DC IN 9-60V In-Vehicle Computer

Made in Taiwan

DDR4 SO-DIMM 3200 4GB~32GB (-40~85°C)

2.5 Inch SATA SSD TLC 128GB~1TB (-40~85°C)
M.2 2280 Key M NVMe 256 GB~1 TB TLC (-40~85°C)

M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module

M.2 3042/52 5G/LTE modem

mPCIe GPS module

mPCIe CAN module

BAT-3000 kit 1150mAH 3S1P Battery kit (-10~60°C for Discharge)
