NVIDIA® Jetson Orin NX/Nano Fanless Edge AI Computer
Features
Introduction
Elevate your next-gen AI application with IBOX-600, an Fanless AI computer powered by NVIDIA Jetson platform. Driven by ARM 8-core Cortex-A78E processor, 1024 NVIDIA CUDA cores, and 32 Tensor cores, IBOX-600 is perfect for intelligent transportation infrastructure and advanced driver assistance systems, enabling high-performance Edge AI applications.

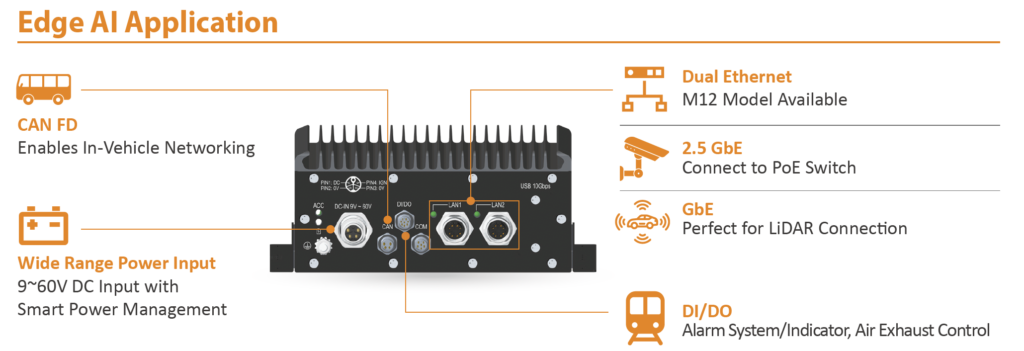

IBOX-600 features versatile expansion slots and 2 high-speed Ethernet ports, supporting a wide input voltage range. These features come in one compact chassis with fanless thermal design, allowing effortless installation in limited space.
Preinstalls with NVIDIA JetPack, IBOX-600 comes equipped with comprehensive software tools for artificial intelligence and Machine Learning development, including CUDA Toolkit, TensorRT, cuDNN, and multimedia API. SINTRONES’s robust system synergizes with NVIDIA’s extensive resources, accelerating the overall implementing time of Edge AI system.
• NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
• NVIDIA® Jetson Orin™ Nano 8GB – 40 TOPS
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5)
• NVIDIA® Jetson Orin™ Nano 4GB – 20 TOPS
(512 CUDA cores + 6-cores ARM Cortex-A78AE CPU + 4GB LPDDR5)
Platform Security Controller (PSC), Security Engine (SE)
M12 X-coded for 1 x 2.5GbE & 1 x GbE
2 x USB 3.2 Type-A with cover
* Two ports share 10Gbps bandwidth
1 x HDMI® 2.1 Type-A upports 3840 x 2160@30Hz
1 x HD audio from the HDMI®
1 x DB-9 for RS-232/422/485
1 x CAN FD
1 x DB-9 for 4 x DI / 4 x DO
1 x USB Type-C for System Recovery (Device only)
1 x nano SIM card slot
5 x Pre-cut holes for external SMA antenna
High-capacity Coin Cell Battery for RTC
UPS for System Power Backup
• 1 x M.2 2230 Key E slot
• 1 x M.2 3042/52 Key B slot
• 1 x mPCIe full-size slot (USB 2.0 supported)
1 x Pre-Installed NVMe SSD (240GB/480GB)
NVIDIA® JetPack including Jetson Linux, NVIDIA® developer tools
-25 ~ 70ºC, ambient w/ 0.6m/s airflow
*Operating temp. varies by accessories installed.
-40 ~ 80ºC
10% RH – 90% RH (non-condensing)
CE, FCC Part-15 Class A, E-Mark, EN50155, EN45545 (R25)
• Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810G – Method 514.6, Procedure I, Category 4
MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
IP 66
Aluminum alloy
Fanless passive cooling design
Wall-mounting
1,400 g
150 mm (L) x 135 mm (W) x 66 mm (H)
IBOX-600-IP66-ONX16-S05｜NVIDIA Jetson Orin NX 16GB / SSD 480GB / Model IP66
IBOX-600-IP66-ONX8-S05｜NVIDIA Jetson Orin NX 8GB / SSD 480GB / Model IP66
IBOX-600-IP66-ON8-S05｜NVIDIA Jetson Orin Nano 8GB / SSD 480GB / Model IP66
IBOX-600-IP66-ON4-S05｜NVIDIA Jetson Orin Nano 4GB / SSD 480GB / Model IP66
IBOX-600-IP66-ON4-S02｜NVIDIA Jetson Orin Nano 4GB / SSD 240GB / Model IP66

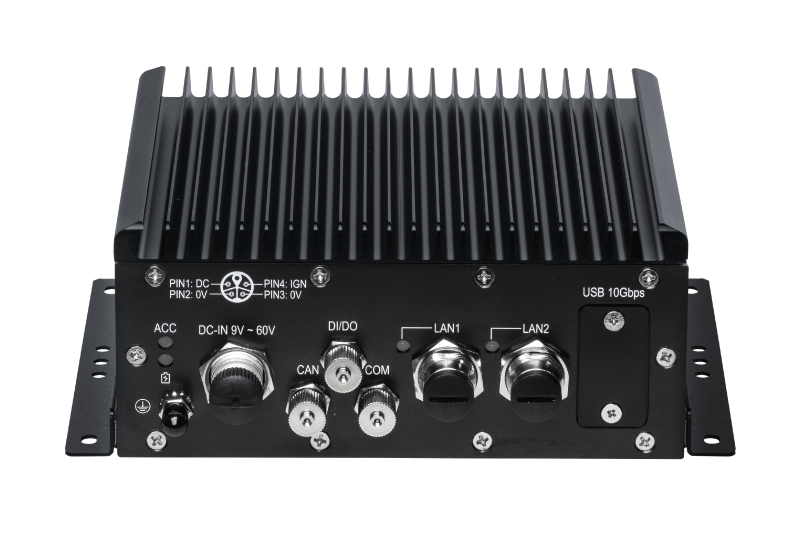

NVIDIA® Jetson Orin NX / Nano SoM w / 2x LAN/ 1x HDMI / 1x CAN bus / DC 9-60V / Intelligent Computer
Made in Taiwan
M.2 Wi-Fi Module
M.2 WWAN Modem
mPCIe GPS Module
DIN Rail / VESA Kit
