10.1" In-Vehicle Monitor (16:10) 1280 x 800 High Resolution / 500 nits / 1000:1 Contract Ratio / Projected Capacitive Touch / DC 9~48V / Front Panel IP65
• Effortless One-Cable Connection
• 1280(H)×800(V) High Resolution
• High Brightness 1000 Nits
• Secondary Video Input (HDMI)
• Projected Capacitive Multi-touch
• 9 ~ 48V DC Power Input
• Operating Temp.: -20°C ~ 60°C
• Vehicle Regulation E-Mark
VDM-101HD is a touch monitor with a wide power input voltage range and operating temperature dedicated to in-vehicle computing. An ideal operating terminal for fleet management and intelligent cockpit applications on commercial vehicles. The panel resolution of 1280 x 800 and typical brightness of 500 nits excel among other 10.1” monitors on the market. SINTRONES’ proprietary cable design, which delivers video, audio, touch signal, and power in one cable connection, provides effortless deployment and installation.
10.1 inches / 16 : 10
1280 (H) × 800 (V) RGB
218.16 (H) × 136.80 (V) mm
80 / 80 / 80 / 80 Degree
500 nits (typical)
1000 : 1 (typical)
LED
Projected Capacitive with Multi-touch

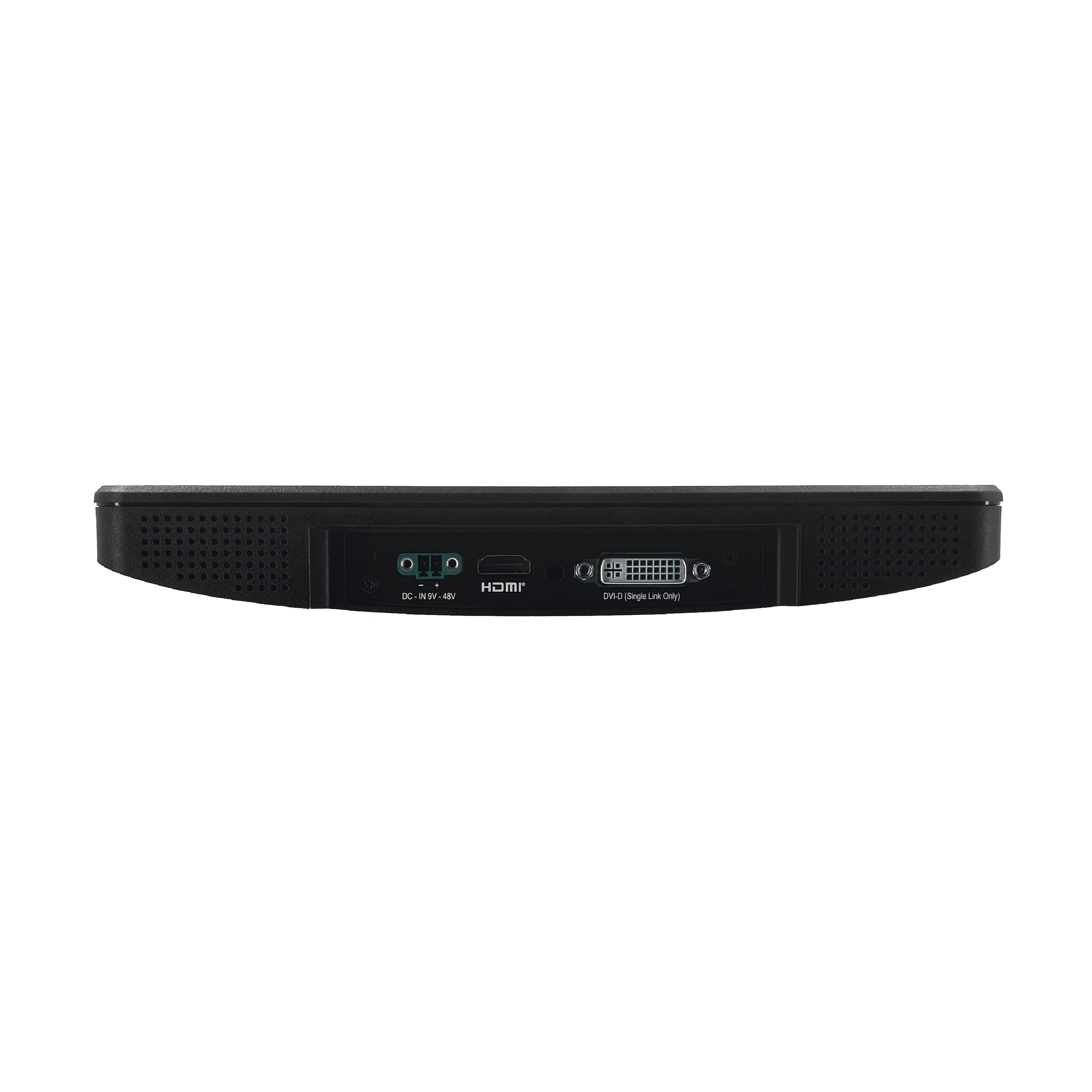

1 x DVI-D 29 pins Connector for DVI-D Single Link Video
1
1
DC 9~48V
1 x HDMI
6 x Touch Hotkey
2 x Built-in Digital MIC
Stereo Speaker with built-in Amplifier
247.84 (L) x 178.59 (W) x 36.36 (H) mm
VESA MIS-D 75 mm
900g
(Front) IP65
(others) IP4X
9 ~ 48V DC Power Input
(Power input via DVI or Terminal Block Connector)
-20°C ~ 60°C with 0.6 m/s airflow
-40°C ~ 80°C
10% RH – 90% RH (non-condensing)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms)
CE, FCC Class A, E-Mark
VDM-101HD
16:10 10.1″ 500nits In-Vehicle Monitor w/ P-CAP Multi-touch
Made in Taiwan
DVI to DVI SINTRONES Custom Pin Define for VBOX-3630, VBOX-3122, VBOX-3131, SBOX-2622, SBOX-2602
DVI to 4 Ports for VBOX-3611, VBOX-3130, VBOX-3121
DVI to 6 Ports for ABOX-5210(G), ABOX-5200(G), ABOX-5000
