車載電腦

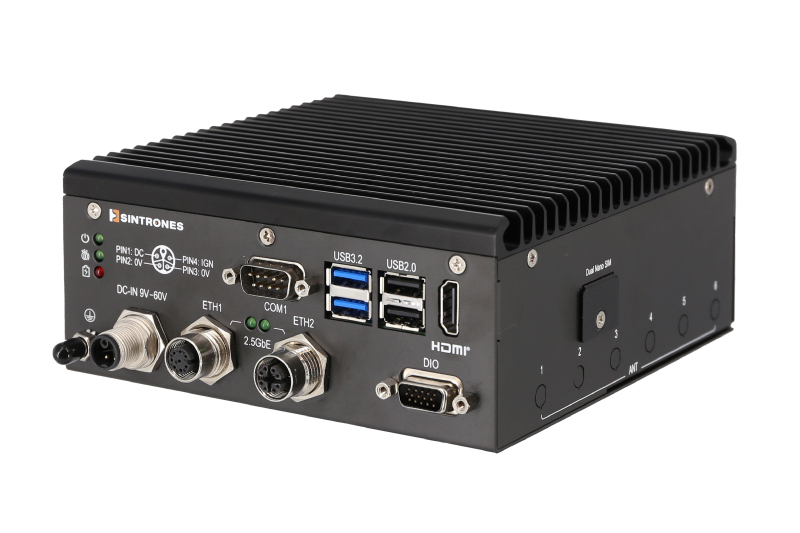

VBOX-3132 Series

Intel Atom® x7835RE Octa-core Processor up to 3.6 GHz
Intel Atom® x7433RE Quad-core Processor up to 3.4 GHz

Intel® Twin Lake N355 Core™ 3 Octa-core Processor up to 3.9 GHz*
Intel® Twin Lake N150 Quad-core Processor up to 3.2 GHz

 Intel® UHD Graphics

1 x SO-DIMM DDR5 up to 16 GB

1 x TPM 2.0

Auto reset for unresponsive system

1 x HDMI® with support for 4K@60Hz as specified in HDMI 2.0b

1 x Line-out, 1 x Mic-in (Optional)

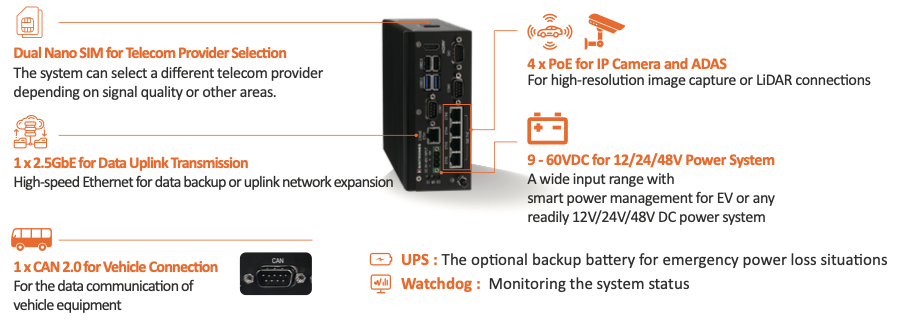

• 1 x 2.5GbE from I226-IT via RJ-45 or M12 X-code for PoE model
• 4 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via RJ-45 or M12 X-code
* Share with 1GbE bandwidth; Power budget: 60W
**Non-PoE model: 2 x 2.5GbE

***M12 X-code cable is not included in the package

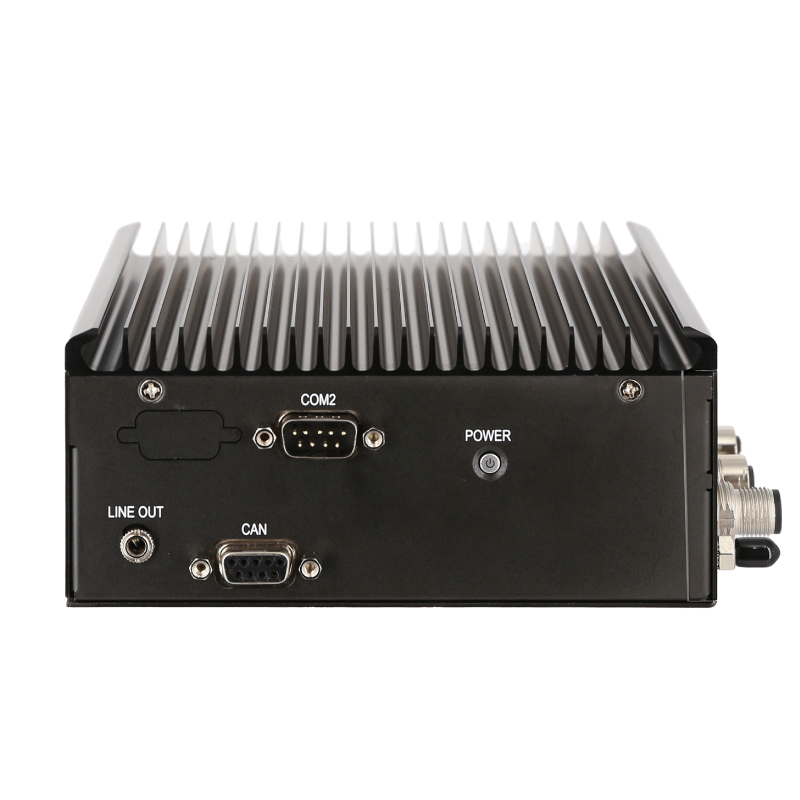

1 x CAN FD

2 x USB 3.2, 2 x USB 2.0

8 x DI (5-48VDC), 4 x DO (12VDC/100mA)

2 × RS-232/422/485 ports, expandable with 4 optional COM ports

• 1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT

• 1 x M.2 2280 Key M for NVMe SSD
• 1 x M.2 2280 Key M for NVMe/SATA SSD

x7000RE Processor: -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
N-series Processor: -30°C ~70°C (-22°F~158°F) with 0.6m/s airflow
*The x7000RE processor for non-PoE models can operate up to 75°C (167°F), the processor performance may be limited.
** Operating temp. varies by the accessories installed.

-40 ~ 80°C (-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

DC 9-60V

*Power input for PoE models is recommended to be 24V or above.

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

 Backup battery for system power backup
* Non-PoE model only

Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS

Aluminum Alloy with Fanless Design

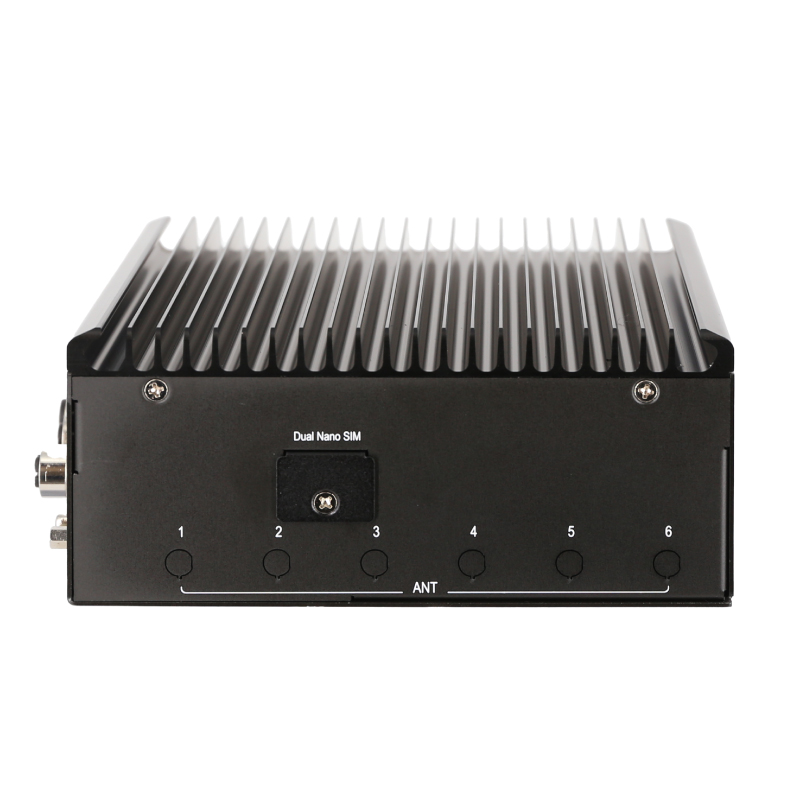

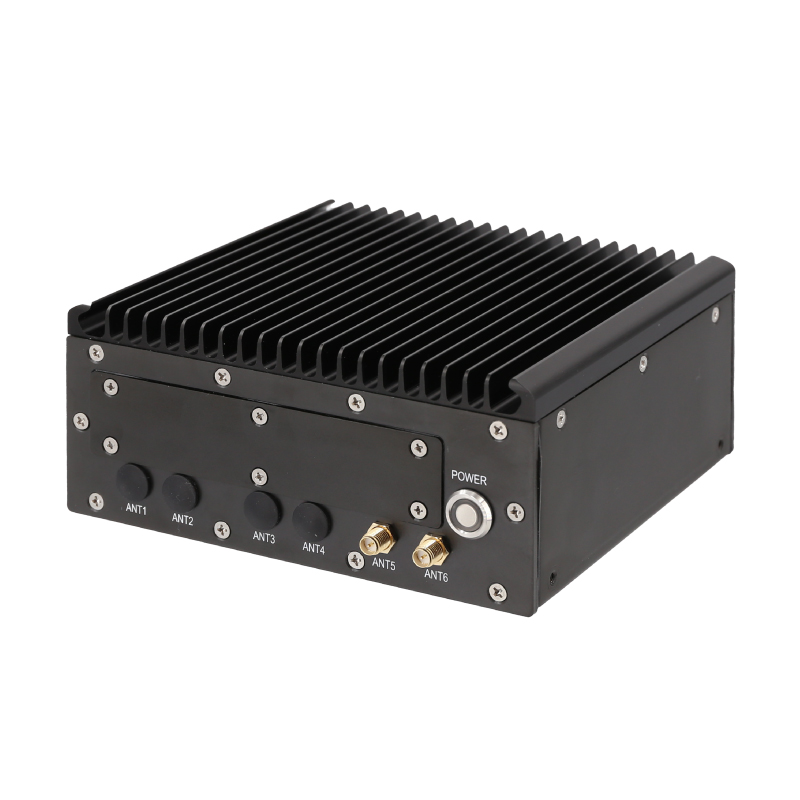

6 x SMA connector panel mount hole

DIN rail, Wall-mount

• RJ-45 PoE model: 1.5 kg (3.31 lb)

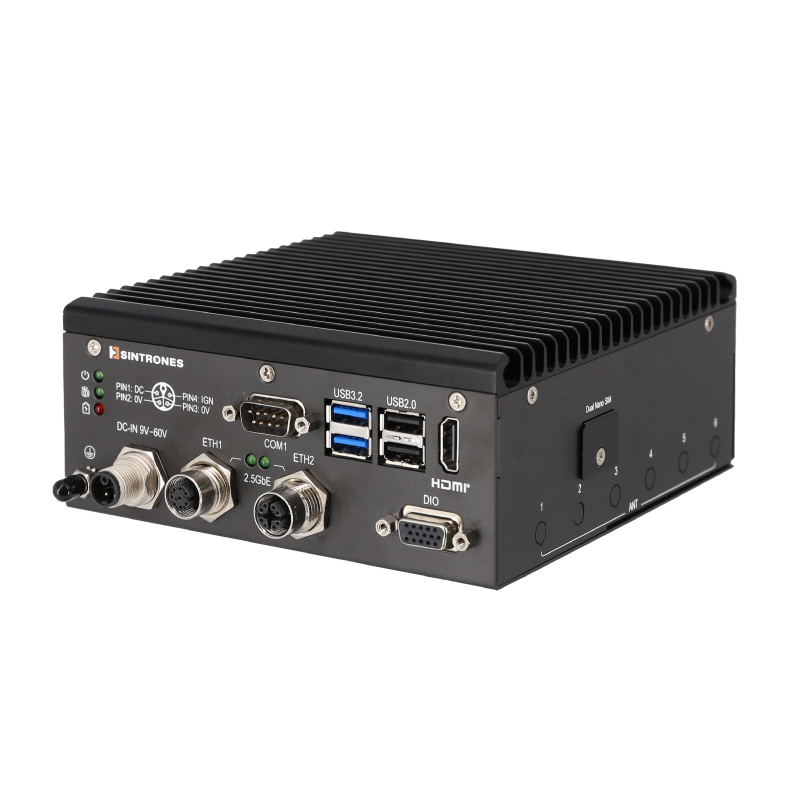

• M12 PoE model: 1.79 kg (3.95 lb)

• RJ-45 model: 150 x 150 x 65 mm (5.91 x 5.91 x 2.56 in.)
• M12 PoE model: 150 x 150 x 87 mm (5.91 x 5.91 x 3.43 in.)

Made in Taiwan

DDR5 SO-DIMM 16GB

M.2 2280 NVMe SSD 256GB~2TB

M.2 2230 Wi-Fi Module

M.2 3042/3052 WWAN Modem

M.2 2242 GNSS Module

BAT-2300v2 (Operating Temp. : -20°C ~ 60°C (-4°F ~ 140°F) (only for non PoE model)

Non-PoE model: DC 12V, 60W

PoE model: DC 24V, 160W

M12 X-code to RJ-45 (1M)
