Intel® 11th Gen Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

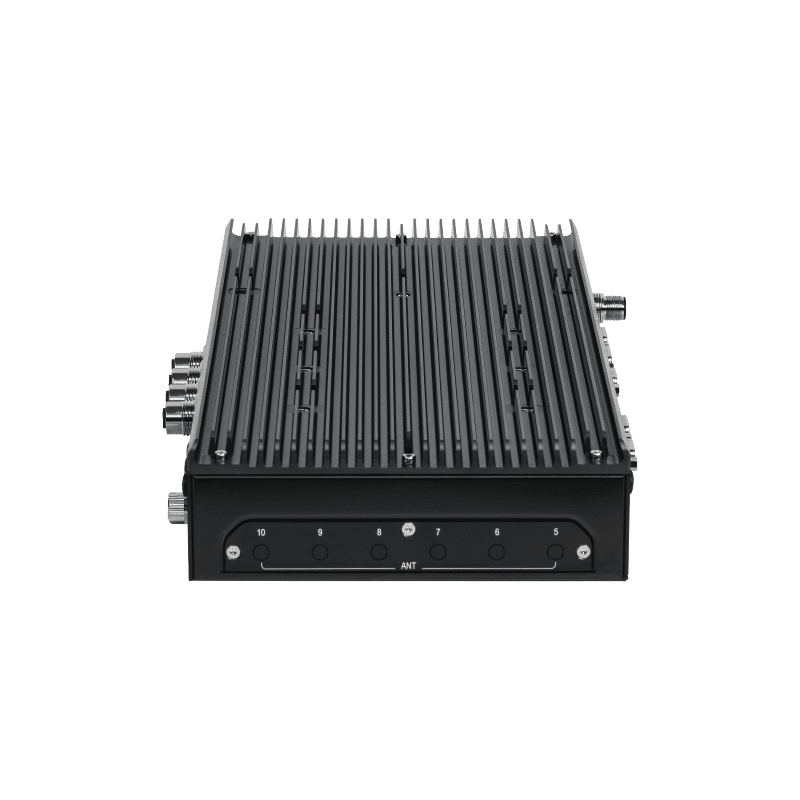

VBOX-3630RP-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. It features an ultra-compact design measuring 365 x 165 x 55 mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630RP-M12X can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.
11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz
N/A
2x DDR4-3200 SO-DIMM Up to 64GB
Watchdog Timer Support, offer 1 – 255 Step
2.0
Intel® Iris® Xe Graphics / Intel® UHD Graphics
2
1
1 (Supports 4 Independent Display)
*Use only Single Link DVI Cables.
N/A
Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz
Max Resolution (DP): 4096 x 2304@60Hz
N/A
1
1
Optional
1 x Intel® 2.5GbE supports mGig, iAMT and PXE LAN Boot ROM
3 x Intel® Gigabit Ethernet
4 x M12 X-coded (1 xmGig supports 2.5GbE, 3 x GbE)
4 x M12 X-coded IEEE 802.3af/at PoE, Max. 60W power budget
4 X RS-232/422/485 (Auto Direction Control)
2 x USB 3.2 Gen 2 (Type A)
2 x USB 2.0 (Type A)
6 x DI (5~60V)
4 x DO (5V/100mA)
(option: 2 x 12V/1A output)
N/A
N/A
2 x SIM Card Sockets Supported Onboard with Eject
7 x Pre-cut Holes for External SMA Antenna
2 x 2.5″ Drive Bay for SATA Type
mPCIe
N/A
mSATA
N/A
M.2
1 x M.2 2280 Key M for NVMe SSD*
*Additional thermal heatsink is required. Please contact our sales representatives for a suitable type.
EXPASION
Mini PCI Express
1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card) 1 x mPCIe Full Size (USB function only)
M.2
1 x M.2 2230 Key A-E
POWER
Power Input
24 ~ 110 VDC Input for PoE Connection
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Power Ignition for Vehicle
Power-off Delay Control
Power off Delay Time Setting by Software
Backup Battery Solution
Patented Battery Kit
MECHNICAL
Dimension
365(L) x 165(W) x 55(H) mm
Weight
3800g (bare-bone)
Construction
Aluminum Alloy
Mounting
N/A
ENVIRNOMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling
Storage Temp.
-40°C ~ 85°C
Vibration & Shock
N/A
IP Rating
N/A
CERTIFICATION
Certification
CE, FCC Class A, E-Mark, EN50155. EN45545-2 (R25)
ORDERING INFORMATION
Model No.
VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)
Description
Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer
State of Origin
Made in Taiwan
