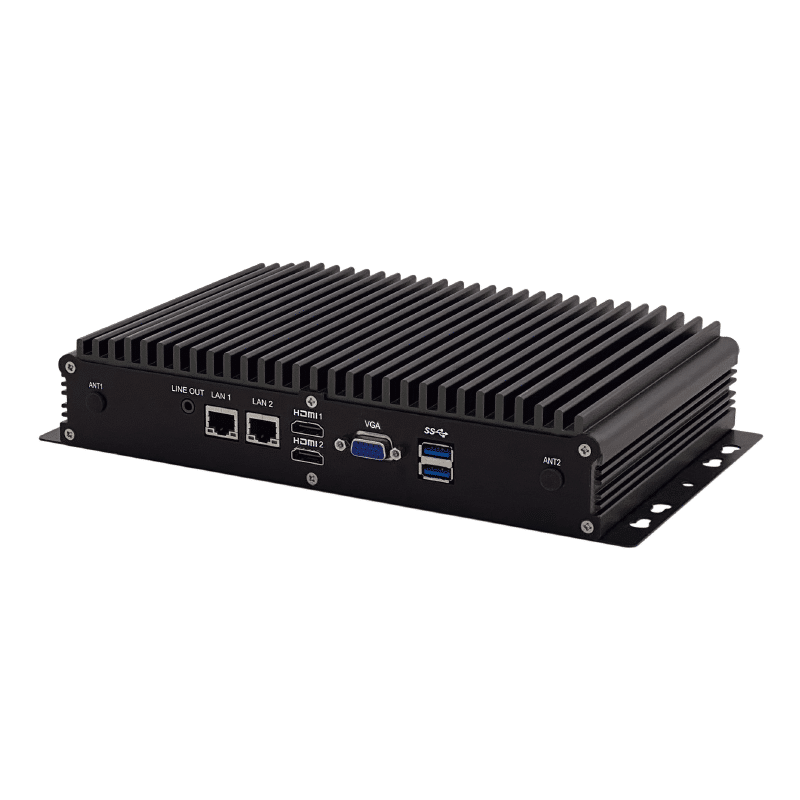

SBOX-2621

Fanless Box PC for Embedded Computing

6th Generation Intel® Core™ i7 Processors (i7-6600U) with HD Graphic 520 / 2 x LAN/ 2 x HDMI®/ VGA DC 9-36V Fanless Box PC

產品階段:Available

產品特色

  • 6th Generation Intel® Core™ i7 Processors (i7-6600U)
  • Triple Display Output (2 x HDMI® / VGA)
  • Dual Gigabit Ethernet
  • Wide Range Operating Temp. : -30~60ºC
  • Ultra Slim(54mm), Compact Size and Fanless
  • 9-36VDC Power Input

產品介紹

SBOX-2621無風扇電腦,搭載第6代Intel Core i7 / i5 / i3處理器、HD 520,配備2個LAN、2個HDMI®、1個VGA,支援寬電壓輸入 9-36VDC,以及最高16GB DDR4 記憶體。第6代Intel微架構”Skylake”非常適合需要提高校能的應用程序。此外,SBOX-2621還可應用於工業自動化、數位電子看板、戶外影像監控和自動導引車(AGV)領域。該解決方案可以應對各種戶外數位應用和極端天氣條件。此外,根據客戶的需求,有兩種尺寸的外殼可供選擇:250 x 167.6 x 54 mm(對於i7和i5)和182 x 167.6 x 54mm(對於i3和C1)。

SYSTEM

Processor

6th Generation Intel® Core™ i7 Processors (i7-6600U) up to 3.40 GHz
6th Generation Intel® Core™ i5 Processors (i5-6300U) up to 3.00 GHz
6th Generation Intel® Core™ i3 Processors (i3-6100U)  2.30 GHz
Intel® Celeron® Processor 3955U 2.00 GHz

Memory

1 x DDR4 SO-DIMM up to 16 GB

Watchdog

1 ~ 255 Level Reset

TPM

2.0

ATA

1 x Intel i210-AT Gigabit Ethernet

GRAPHICS

Graphics Engine

Intel HD Graphics

HDMI®

2

VGA

1

AUDIO

Line-Out

1

ETHERNET

LAN Chipset

1 x Intel i219-LM Gigabit Ethernet (LAN 2), support iAMT for i5 & i7

LAN

2 x RJ45 Ports for GbE

I/O

Serial Port

3 x RS-232/422/485 (for i7 and i5)
4 x RS-232/422/485 (for i3 and C1)

USB

2 x USB 2.0 Ports

2 x USB 3.0

GPIO

4 In and 4 Out GPIO Ports (5V Level)

STORAGE

Type

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD

1 x SATA DOM

EXPANSION

Mini-Card Slots

2 (one with SIM for LTE only)

M.2

1 x  M.2 Key A-E

MECHANICAL

Dimensions

182 x 167.6 x 47 mm (for i3 and C1)
250 x 167.6 x 54 mm (for i7 and i5)

Weight



1,200g (for i3 and C1)
2,300g (for i7 and i5)

Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30 ~ 60°C, ambient w/ 0.6m/s airflow

Storage Temp.

-40 ~ 85°C

POWER

Power Input

9-36VDC Input w/ Reverse Polarity OCP and OVP Protection

ORDERING INFORMATION

Model No.

SBOX-2621-i7, SBOX-2621-i5, SBOX-2621-i3, SBOX-2621-C1

Description

6th Generation Intel® Core™ i7 Processors (i7-6600U) with HD Graphic 520 / 2 x LAN/ 2 x HDMI®/ VGA/ DC 9-36V Fanless Box PCState of Origin

State of Origin

Made in Taiwan

Optional Accessories

DRAM

SO-DIMM DDR4-2133, 4GB~16GB, 0~70°C/-40~85°C

SATA SSD

2.5 inch MLC/TLC 64 GB~1 TB, 0~70°C/-40~85°C

SATA DOM

MLC 8 GB~128 GB, 0~70°C/-40~85°C

Wi-Fi

M.2 Key A-E 2230, 802.3a/b/g/n/ac

Modem

LTE mini PCIe card

GPS

GPS mini PCIe card

Power adapter

Power Adapter 12V/5A 60W Jack
