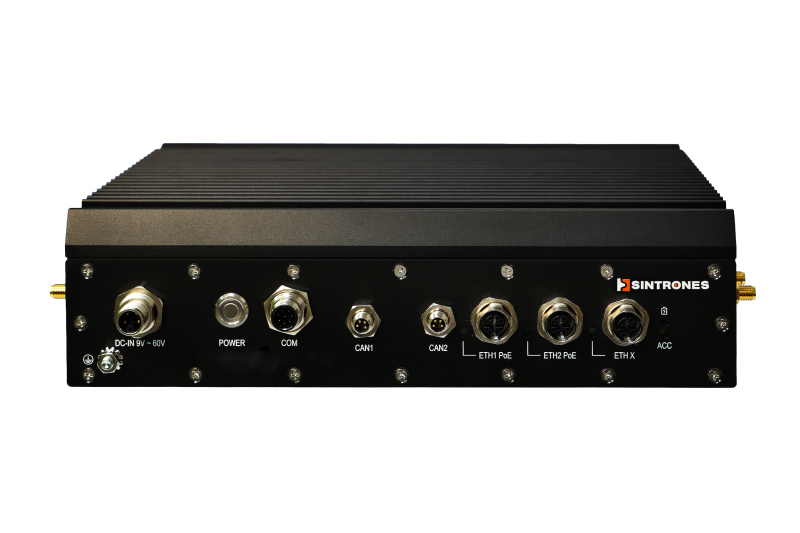

IBOX-650P-IP66

NVIDIA® Jetson AGX Orin Fanless Edge AI Computer

NVIDIA® Jetson AGX Orin™ Edge AI Fanless Computer

Product Status: Coming Soon
IP66 Design (Waterproof and Dustproof)
線上詢價 Datasheet

Features

  • NVIDIA® Jetson AGX Orin™ SoM with 2048 CUDA Cores
  • IP66 Design (Waterproof and Dustproof) for Harsh Environment
  • 1 x 10 GbE, 2 GbE with PoE via Phoenix Contact® M12 IP67 Connectors
  • 2 x CAN FD
  • 2 x RS-232/422/485*, 4 x DI/4 x DO*
  • Supporting 4 x GMSL-2 Cameras (via FAKRA Connectors)
  • 9 ~ 60VDC Input with Built-in Smart Ignition Power Management
  • -25 ~ 70°C Operating with Fanless Design
  • Patented Design of Emergency Backup Battery*



*This is a customized specification. If you have any needs, please contact our sales representative.

Edge AI Application

SYSTEM

Module

  • NVIDIA® Jetson AGX Orin™ 64GB – 275 TOPS
    (2048 CUDA® cores GPU + 12-core Arm Cortex-A78AE CPU + 64 GB LPDDR5)
  • NVIDIA® Jetson AGX Orin™ 32GB – 200 TOPS
    (1792 CUDA® cores GPU + 8-core Arm Cortex-A78AE CPU + 32 GB LPDDR5)

Network

Marvell® Industrial 10GbE, Intel® Industrial 2.5GbE

Security

Security Boot, Arm TrustZone

INTERFACE

Ethernet

1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4 (PoE+ 30 watts)

(3 x Phoenix Contact® M12 X-coded connectors)

USB

2 x USB Type-A/IP67 connector for USB 3.2
* One port share 10Gbps bandwidth

Video

1 x HDMI Type-A/IP67 connector for HDMI 2.1 output

Audio

1 x HD Audio from the HDMI

Serial Port

1 x M12 A-coded connector for RS-232/422/485

CAN Bus

2 x M8 A-coded connectors for CAN FD

Mgmt. Port

1 x USB Type-C for System Recovery (Device only)

Camera

4 x FAKRA-Z connectors for GMSL-2 cameras

SIM Card

1 x Nano SIM card slot

POWER

Supply Voltage

1 x Phoenix Contact® M12 K-coded connector for DC-IN 9~60V

Power Protection

OCP, OVP, Surge and Reversed Polarity Protection

Power Management

Ignition Detection with Smart Power Management

RTC Battery

High-capacity coin cell battery for RTC

UPS (Option)

Backup battery for system power backup

SOFTWARE

Operating System / SDK

NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools

INTERNAL EXPANSION

M.2 Slot

  • 1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot
  • 1 x M.2 2230 Key E slot
    * Thermal solution is required for M.2 5G Module
mPCle

1 x mPCIc Full size slot (USB.2.0 supported)

STORAGE

Type

  • 1 x 64GB eMMC (Built-in within SoM)
  • 1 x M.2 2280 Key M slot supports NVMe SSD (Pre-installed)

MECHANICAL

Dimension

300(L) x 190(W) x 77.5(H) mm

Weight

5,100g (Barebone)

Construction

Aluminum Alloy

Mounting

Wall-mount

Ingress Protection

IP66

ENVIRONMENT

Operating Temp.

-25°C ~ 70°C w/0.6 m/s airflow (for barebone system)

*Operating Temperature Varies by Accessories Installed.

Storage Temp.

-40°C ~ 85°C

Relative Humidity

10% RH – 90% RH (non-condensing)

Vibration

  • MIL-STD-810G, Method 514.6, Procedure I, Cat.4 (Operating)
  • IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
Shock (with SSD)

MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

CERTIFICATION

Certification

CE, FCC Class A, E-Mark, ECE R118, EN50155*, EN45545-2 (R25) *On going

ORDERING INFORMATION

Model No.

  • IBOX-650P-IP66-JAO64｜NVIDIA® Jetson AGX Orin™ 64GB / GMSL / IP66 / Model M12X
  • IBOX-650P-IP66-JAO32｜NVIDIA® Jetson AGX Orin™ 32GB / GMSL / IP66 / Model M12X
  • IBOX-650P-IP66-JAO32-LE｜NVIDIA® Jetson AGX Orin™ 32GB / IP66 / Model M12X

*Without an external NVMe SSD, the Jetpack will be pre-installed in the internal 64GB eMMC Jetson Orin SoM Lifecycle is available through January 2030.

Description

NVIDIA® Jetson AGX Orin™ w/ 1x 10GbE / 2x 2.5GbE / 1x HDMI / 2x CAN FD/ DC 9-60V/ Intelligent Computer

State of Origin

Made in Taiwan

Optional Accessory

Storage
Wi-Fi

M.2 2280 NVMe SSD 480GB / 960GB

WWAN Modem

M.2 3042/52 WWAN Modem

GNSS

mPCIe GPS Module
