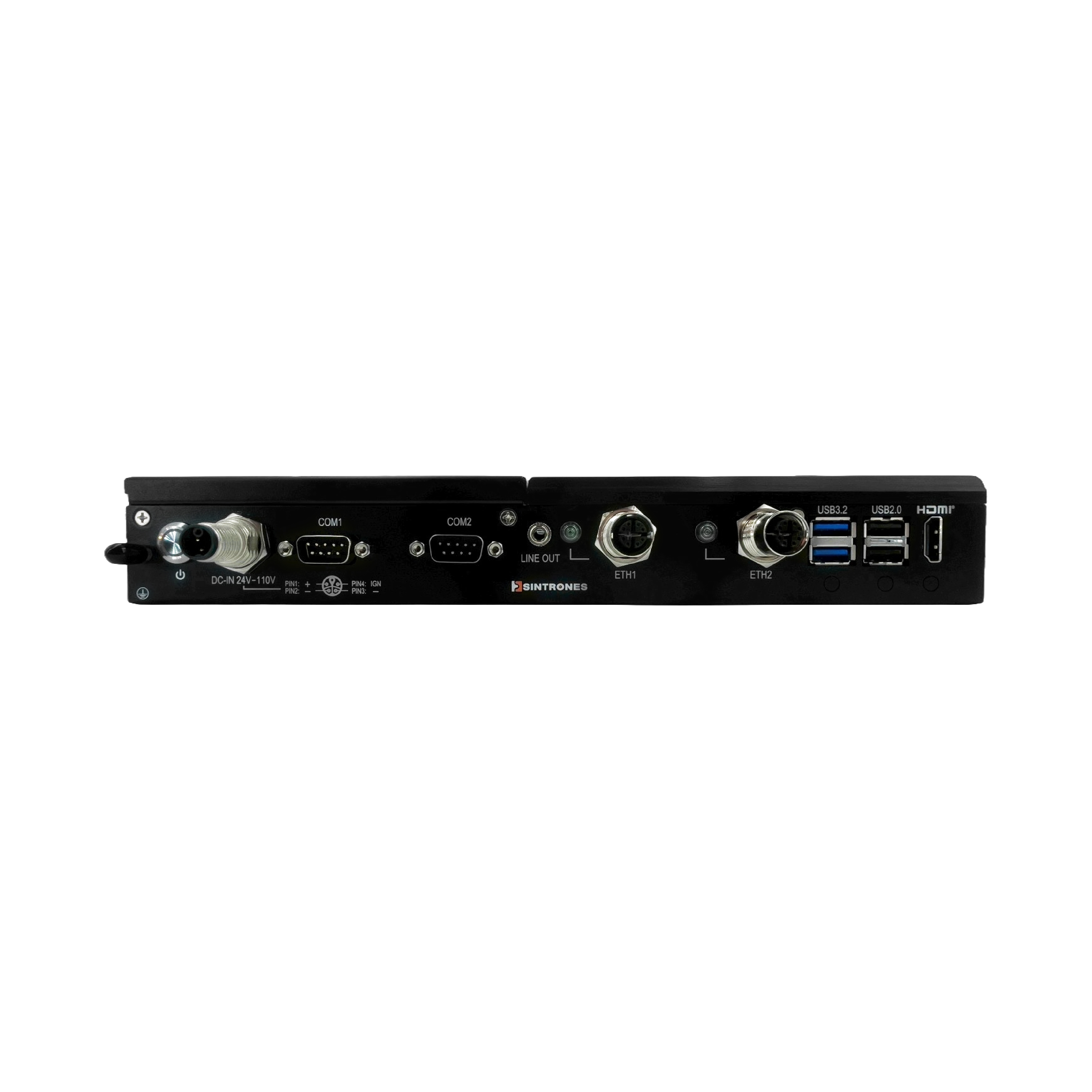

RBOX-1001-M12X Series

• Intel Atom® x7835RE 8-core processor up to 3.6 GHz

• Intel Atom® x7433RE 4-core processor up to 3.4 GHz

• Processor-integrated GPU – Intel® UHD Graphics

• 1 x DDR5-4800 SO-DIMM up to 16 GB

• TPM 2.0

• Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

• 1 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.1

• 1 x Line-out

• 2 x 2.5GbE (Intel® I226-IT) via M12 X-code

• 2 x USB 3.2
• 2 x USB 2.0

• 8 x DI (DC 5-48V), 4 x DO (DC 12V/100mA)

• 2 × RS-232/422/485

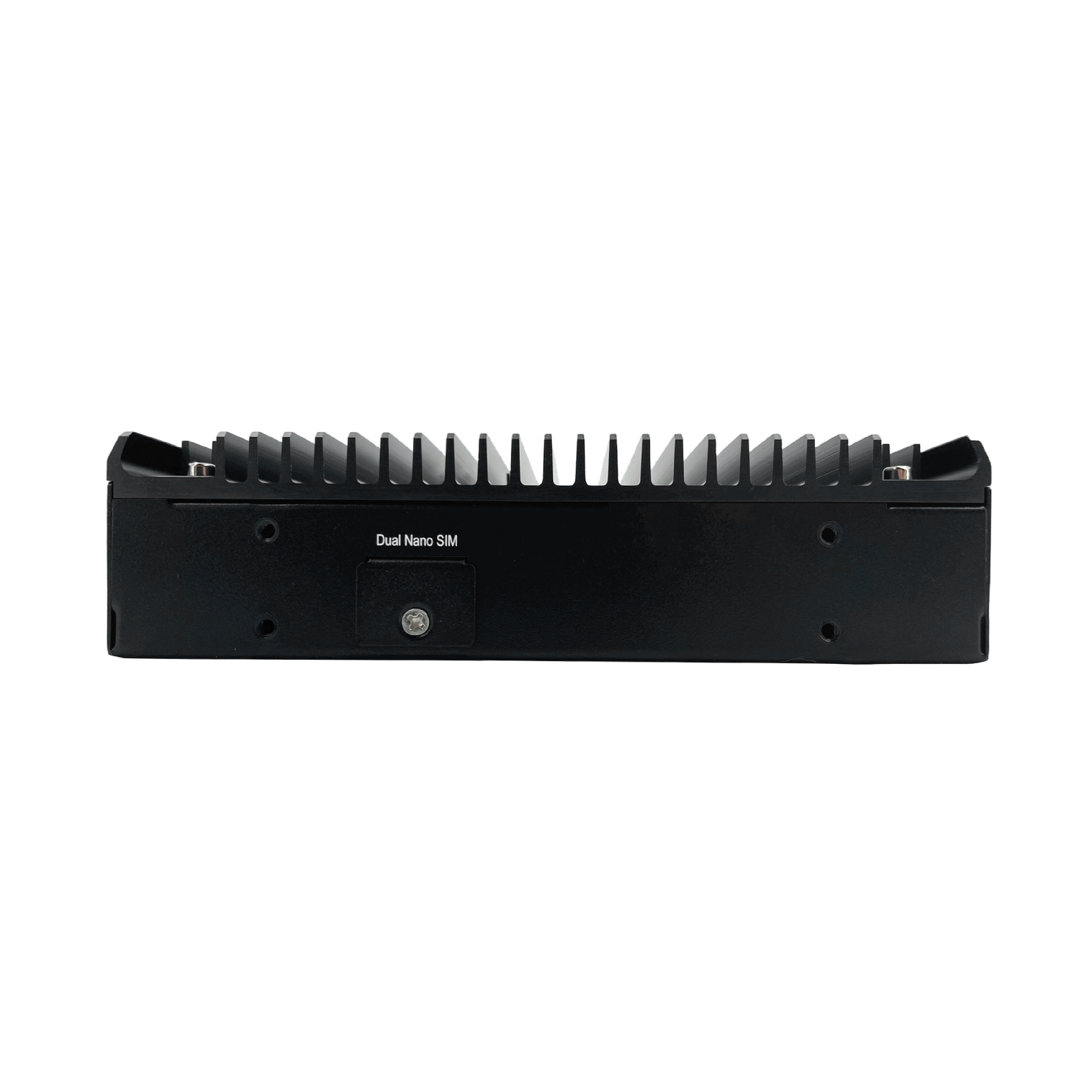

• 1 x M.2 3042/3052 Key B for WWAN w/ dual Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT

• 1 x M.2 2280 Key M for NVMe SSD
• 1 x M.2 2280 Key M for NVMe/SATA SSD

• CE, FCC Class A, UKCA, EN 50155, EN 45545-2 (R25)

• DC 24-110V (Galvanic Isolation) via M12 K-code

• OCP, OVP, surge protection, reversed polarity protection

• Ignition detection, Smart Power Management

• Removable top cover for RTC coin cell battery

• Windows 11 IoT Enterprise LTSC
• Ubuntu 24.04 LTS

• -40°C ~ 75°C (-40°F ~ 167°F) with 0.6 m/s airflow *Operating temperature varies by accessories installed.

• -40°C ~ 80°C (-40°F ~ 176°F)

• 10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4

• MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

• Aluminum Alloy

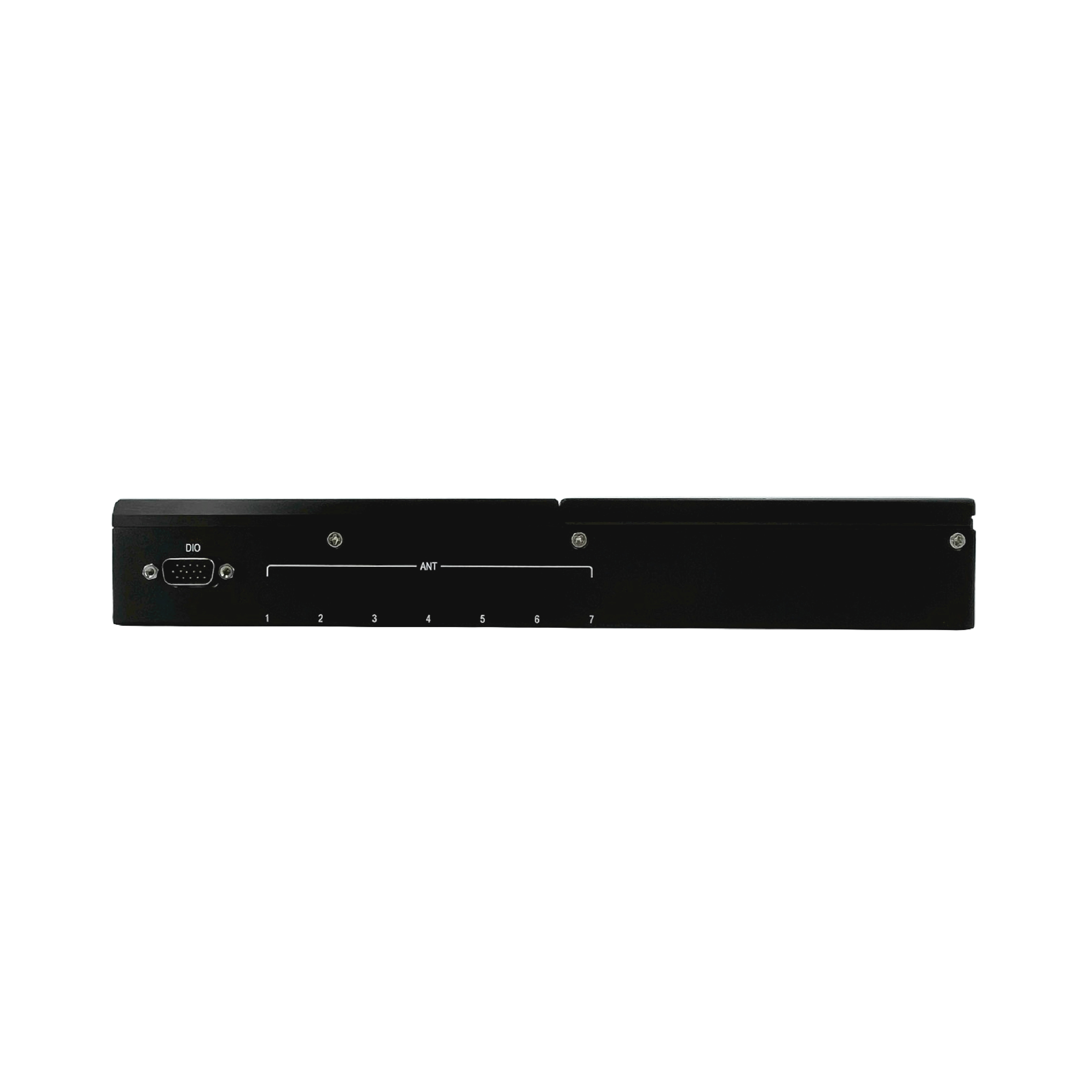

• 7 x SMA connector mounting hole

• Rack/Wall mounting

• TBD

• 285 x 165 x 43 mm (11.22 x 6.50 x 1.70 in.)

• IP40

RBOX-1001-M12X-zz (zz=A8=Atom® x7835RE, zz=A4=Atom® x7433RE

Intel Atom® x7835RE with 24-110VDC Galvanic Isolation Power Input Railway Computer

Made in Taiwan

DDR5-5600 SO-DIMM, 8 GB to 16 GB, -40°C ~ 85°C

M.2 2280 Key M NVMe SSD, -40°C ~ 85°C

M.2 2280 Key B-M SATA SSD, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C

AC/DC 100-240V/12V 60W C14 DC plug power adapter

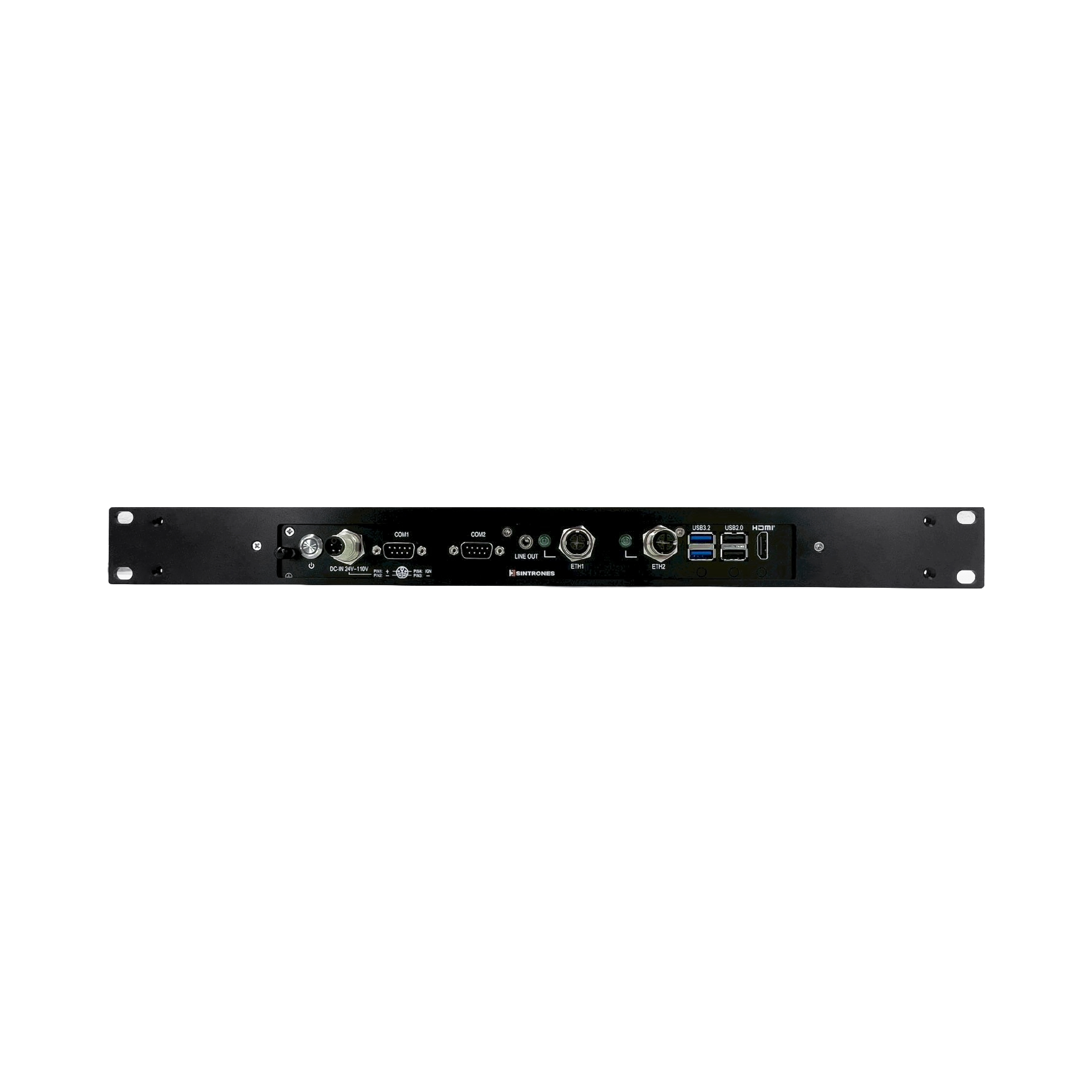

1U rackmount kit
