邊緣運算 AI 電腦

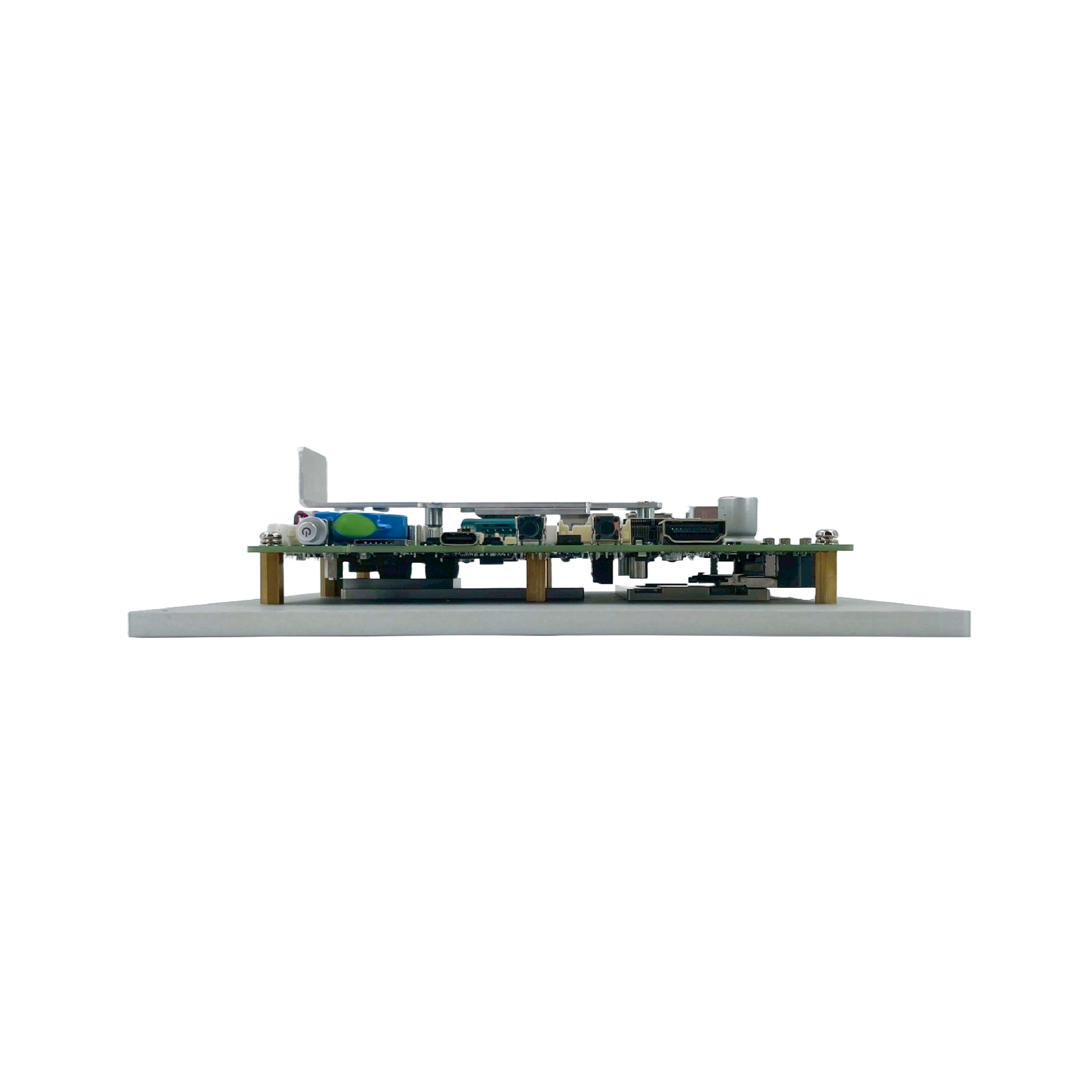

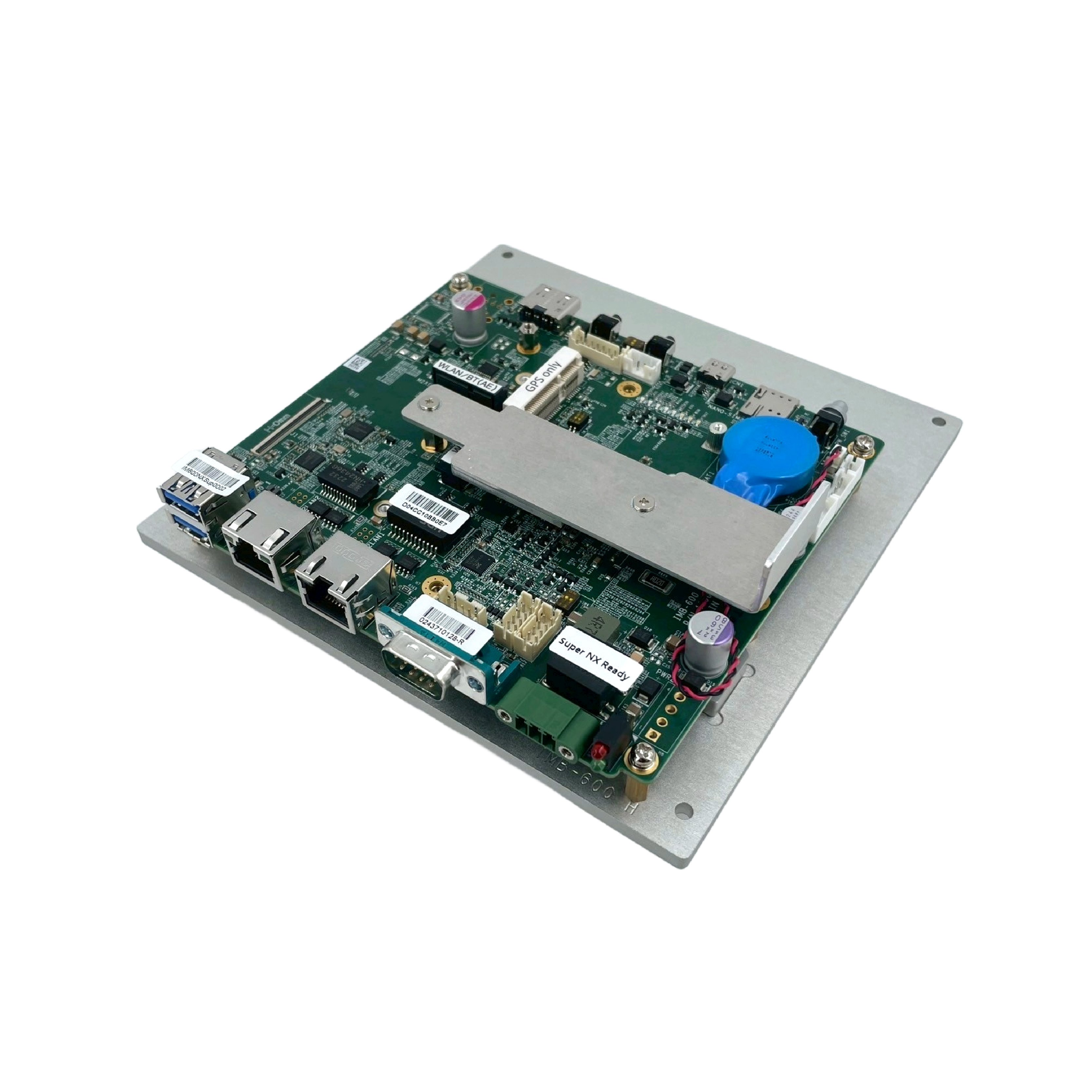

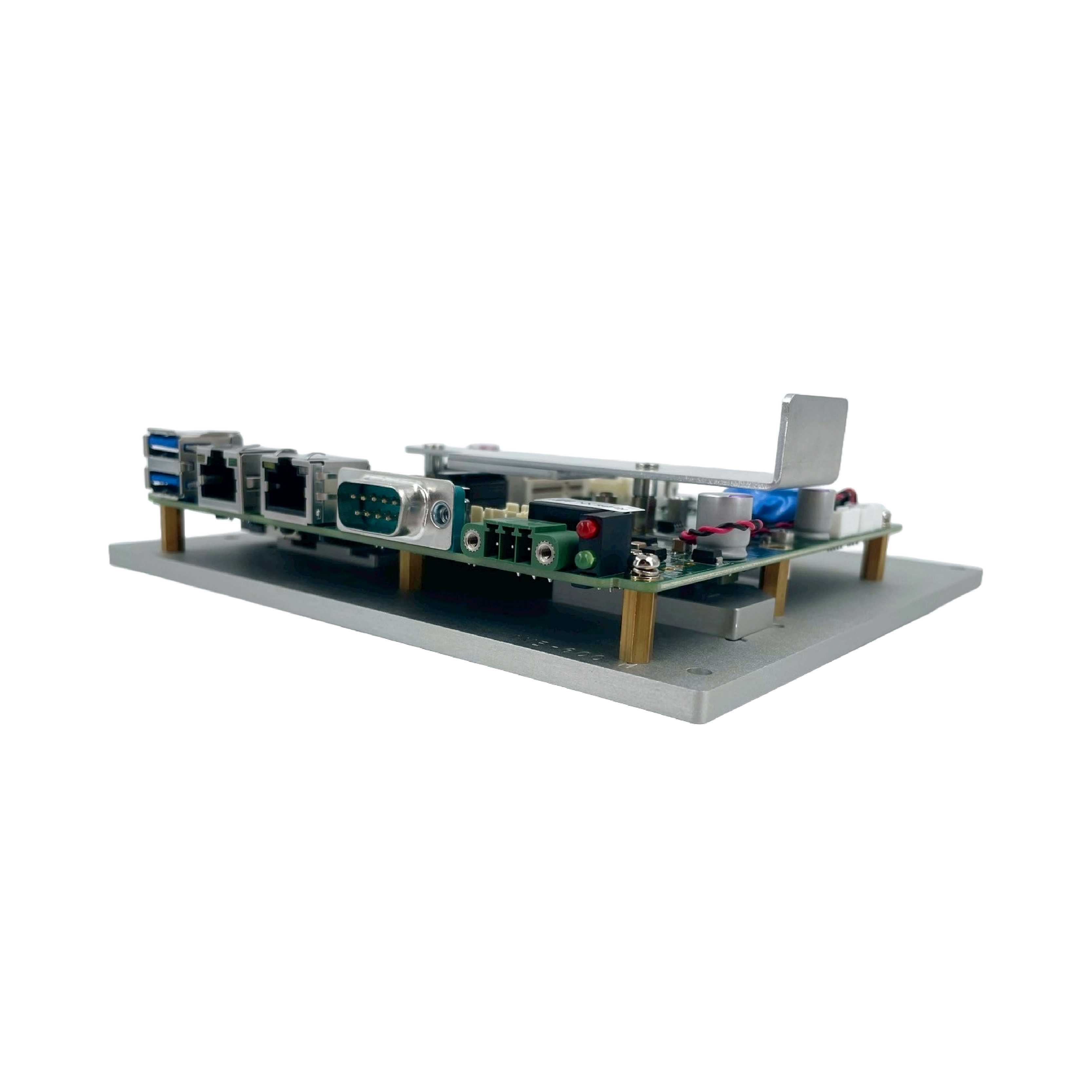

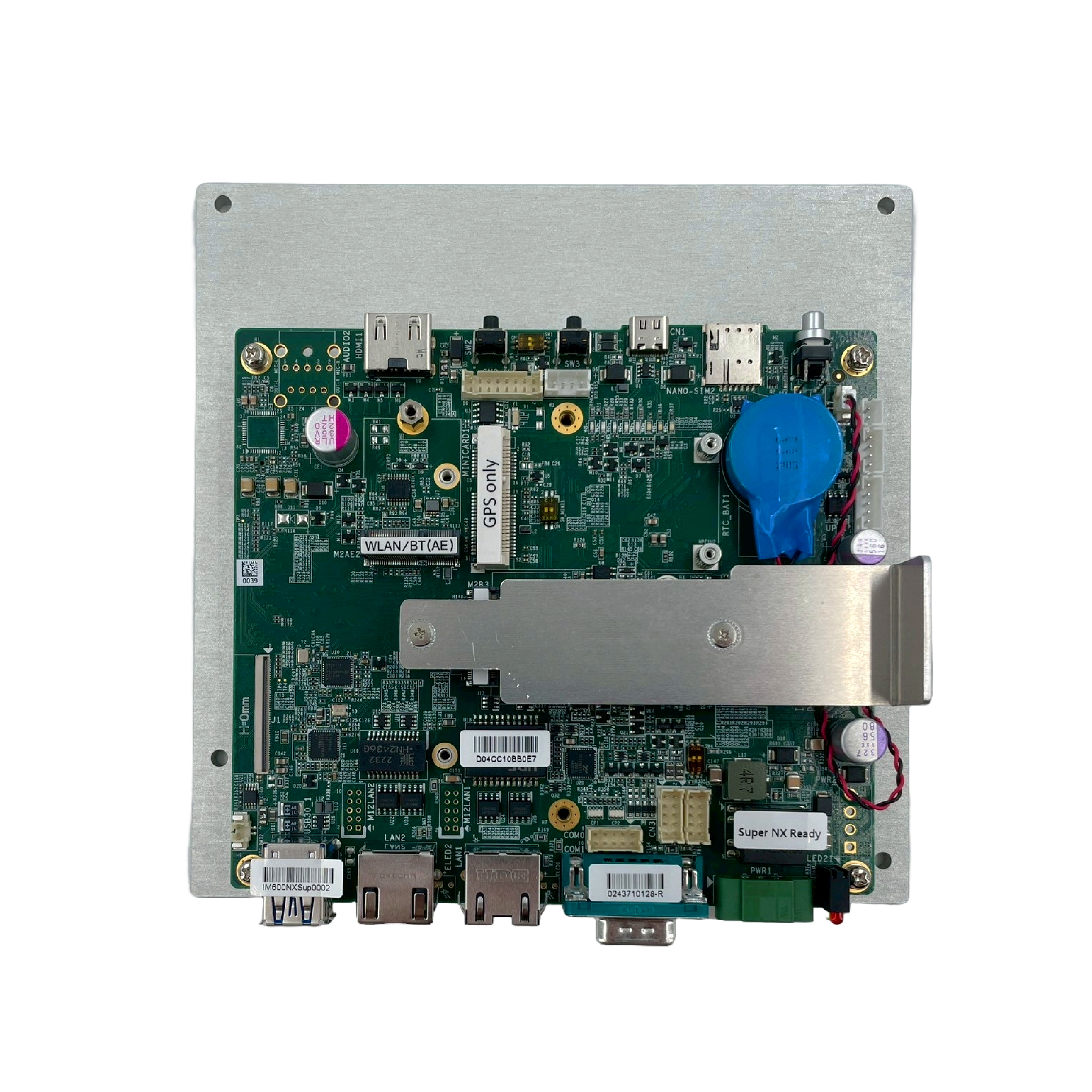

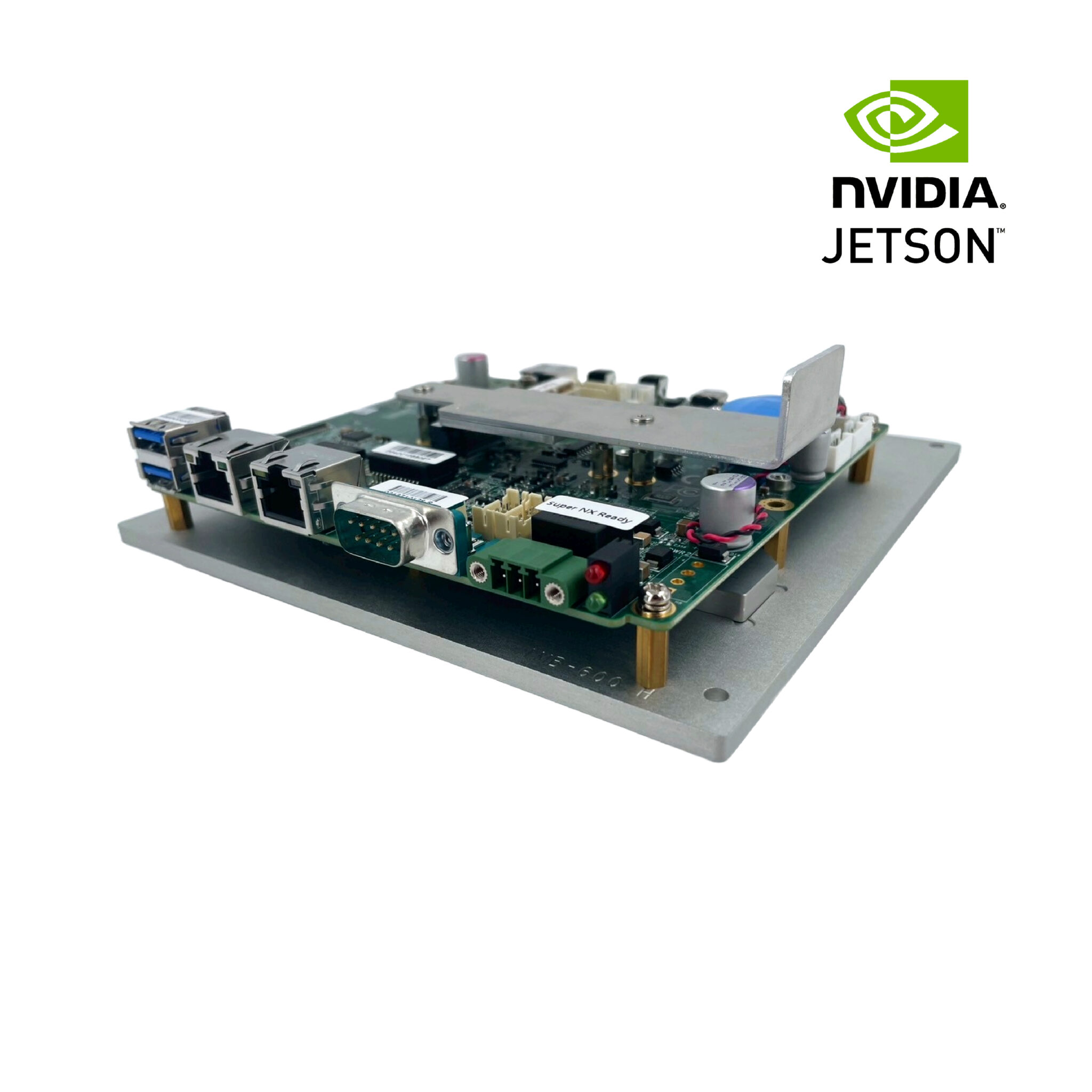

IMB-600 Developer Kit

• NVIDIA® Jetson Orin™ NX 16GB
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)

• 1 x Intel® 2.5GbE, 1 x SoM Built-in GbE

• Platform Security Controller (PSC), Security Engine (SE)

• The self-reset mechanism for unresponsive system

• 1 x HDMI Type-A

• 1 x HD Audio from the HDMI

• 2 x RJ-45 connectors

• 1 x Eight lanes MIPI CSI-2 | D-PHY 2.1 via 50-pin FFC

• 1 x CAN FD via DB-9

• 2 x USB 3.2

• 4 x DI, 4 x DO (12VDC/100mA) via DB9 connector

• 1 x RS-232/422/485 via DB9 connector

• 1 x USB type-C for system recovery (device only)

• DC 9V-60V for 12/24/48V via 3-pin Terminal Block

• OCP, OVP, Surge Protection, and Reversed Polarity Protection

• Supports Smart Power Management

• High-capacity coin cell battery for RTC

• NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools

• -25°C ~ 50°C (-13°F ~ 122°F), with SSD, ambient w/ air flow 0.6m/s (ONX16 model)

• -40°C ~ 80°C (-40°F ~ 176°F)

• 10% RH – 90% RH (non-condensing)

• 1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP)

• Aluminum Alloy

• Mini-ITX Standard Mounting Holes

• 0.9 kg (1.98 lb)

• w/o VDB-100GDS4/101GDS4 :
170 (L) x 170 (W) x 35.44 (H) mm ( 6.7 x 6.7 x 1.4 inch)

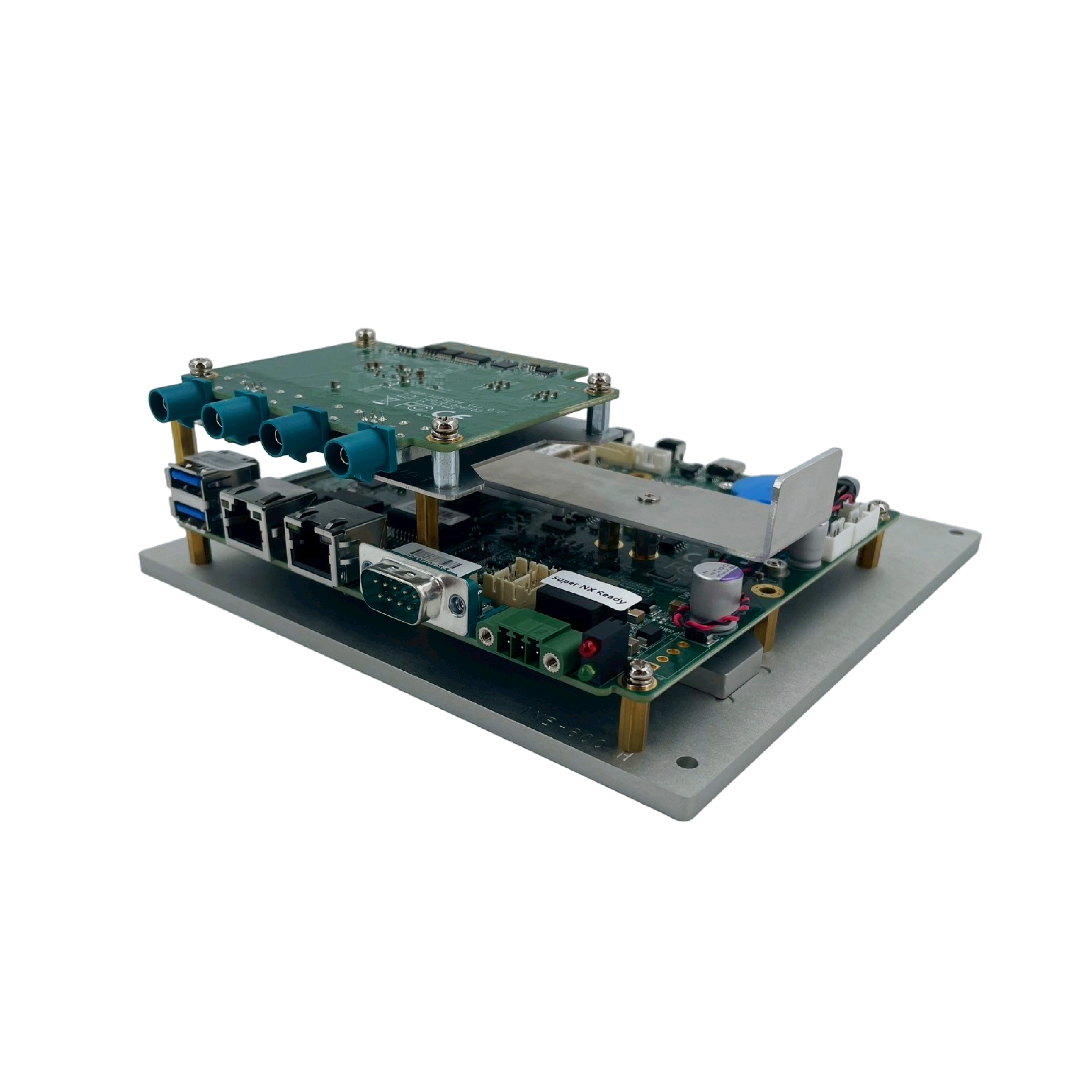

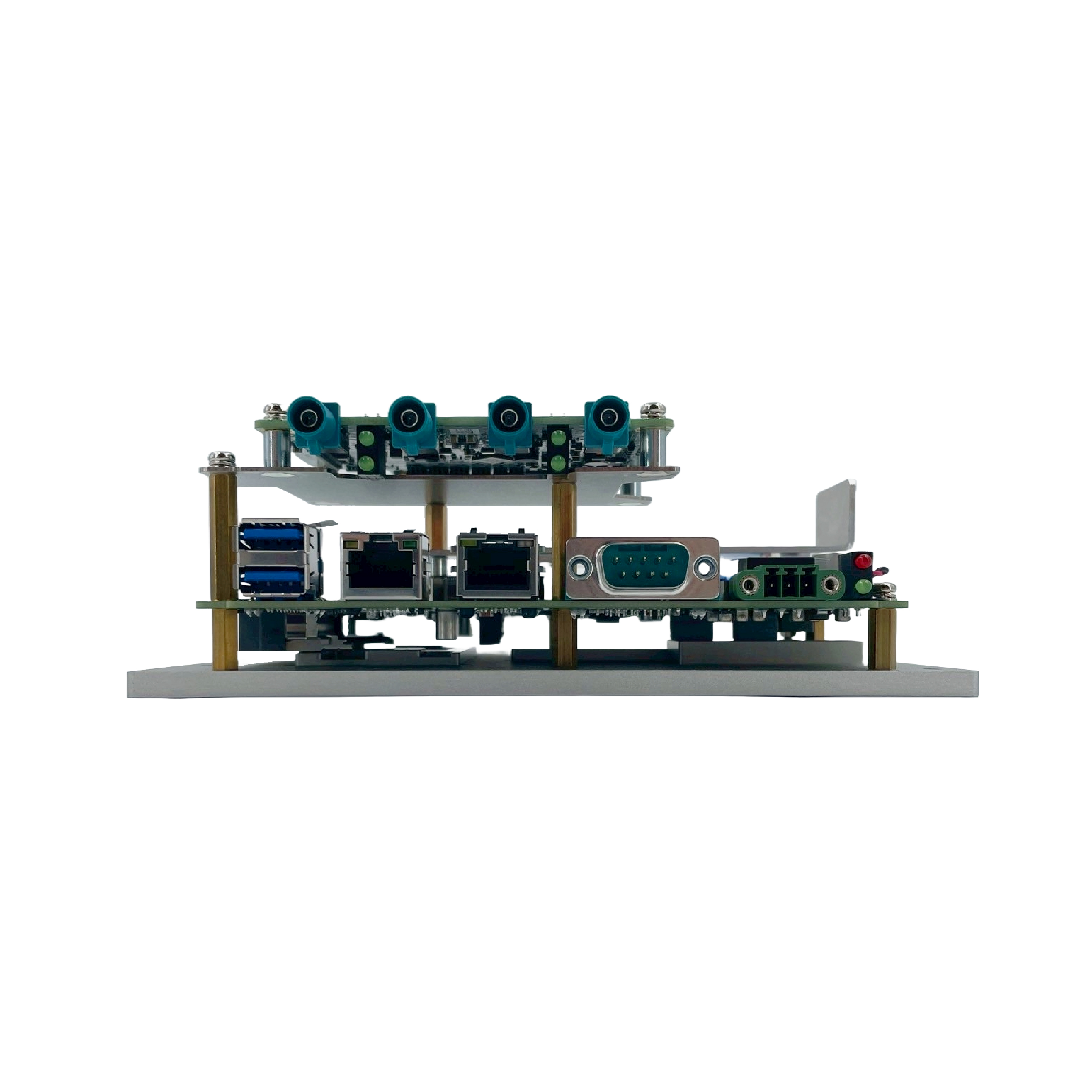

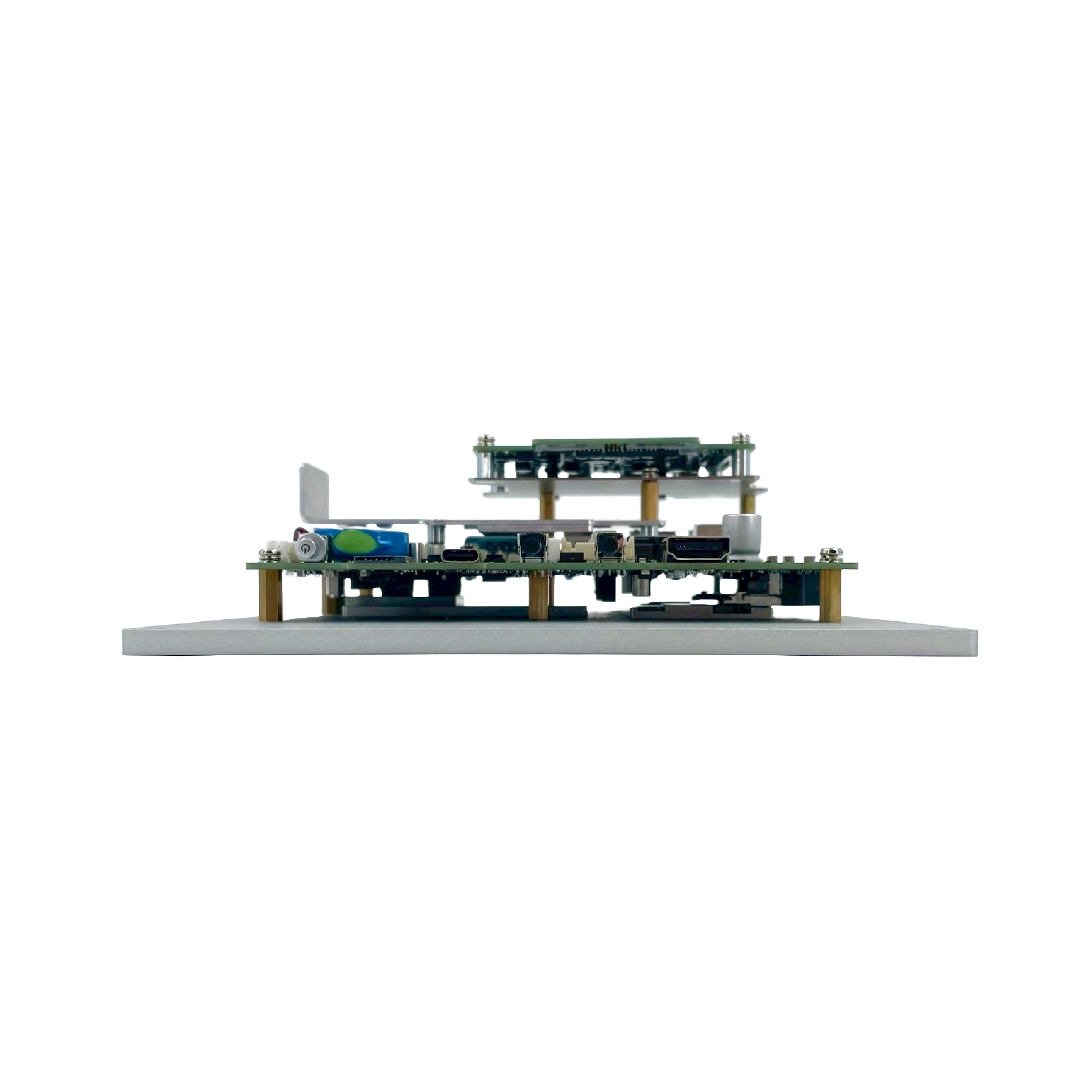

• w/ VDB-100GDS4/101GDS4 :
170 (L) x 170 (W) x 59.4 (H) mm (6.7 x 6.7 x 2.34 inch)

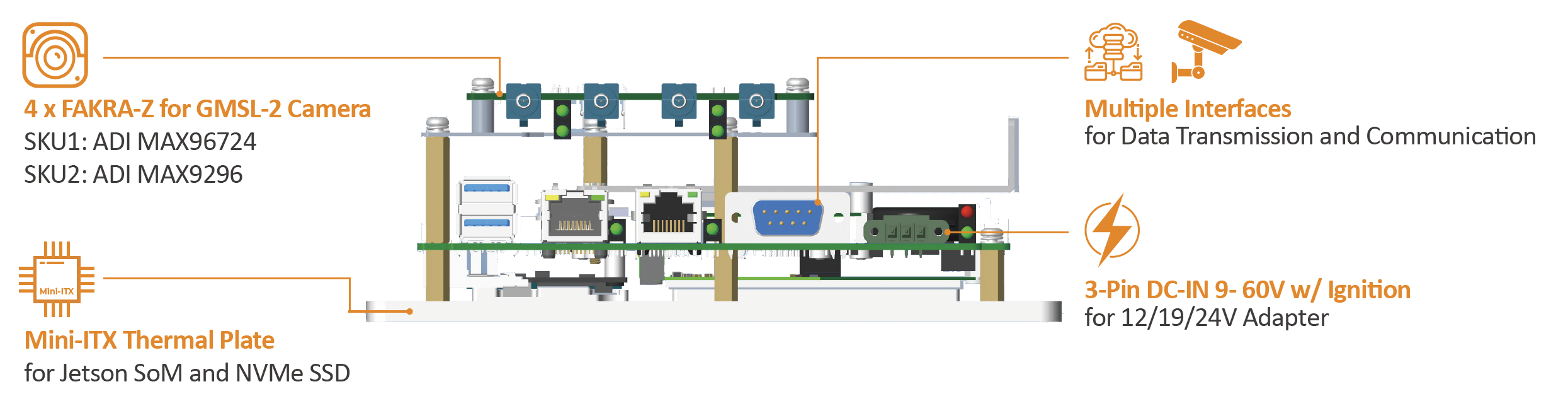

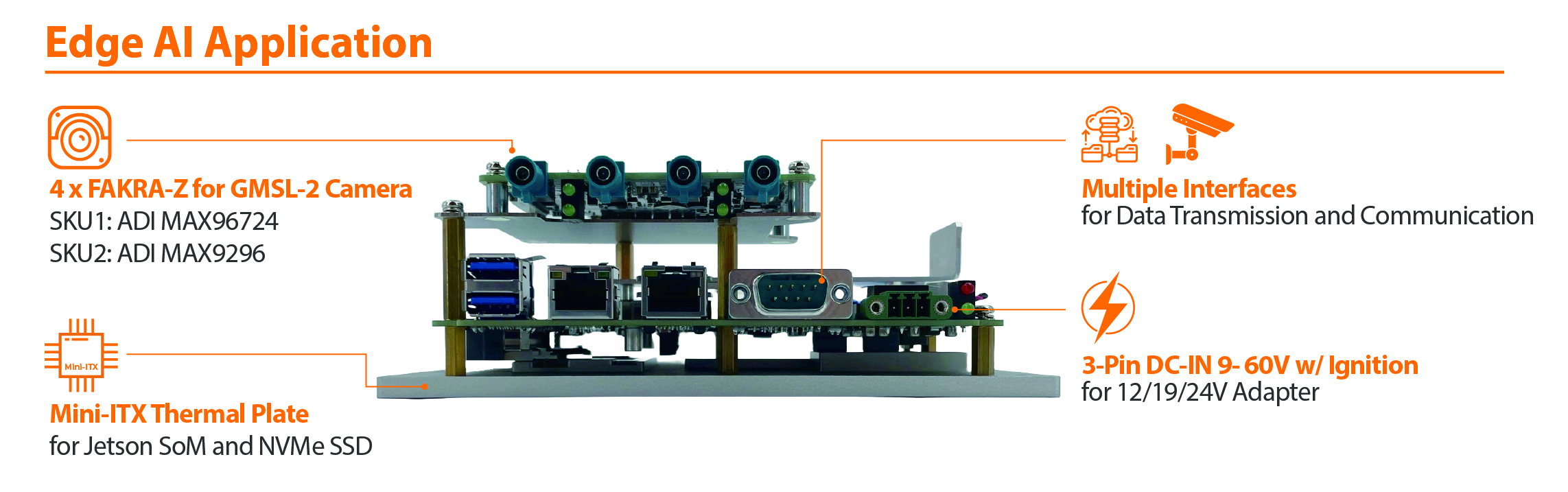

• VDB-100GDS4 DEV KIT /4-port GMSL-2 Deserializer – Analog Devices MAX96724 (Option for Plus Version)

• VDB-101GDS4 DEV KIT /4-port GMSL-2 Deserializer – Analog Devices MAX9296A (Option for Plus Version)

• SSD 480 GB* / NVMe SSD 480GB w/ System BSP

• SSD 240 GB* / NVMe SSD 240GB w/ System BSP

• BBU-2300V2 / Battery Backup Unit 2350 mAh

• NVIDIA® Jetson Orin™ NX Developer Kit

• Made in Taiwan (Carrier PCBA)

• M.2 2230 Wi-Fi Module

• M.2 3042/52 WWAN Modem

• mPCIe GPS Module

• SINTRONES – VCM-1020G2 Series (Sony IMX390 2MP, 63.9°, GMSL-2, 63.9°/120°/186°)

• oToBrite – otoCAM223
