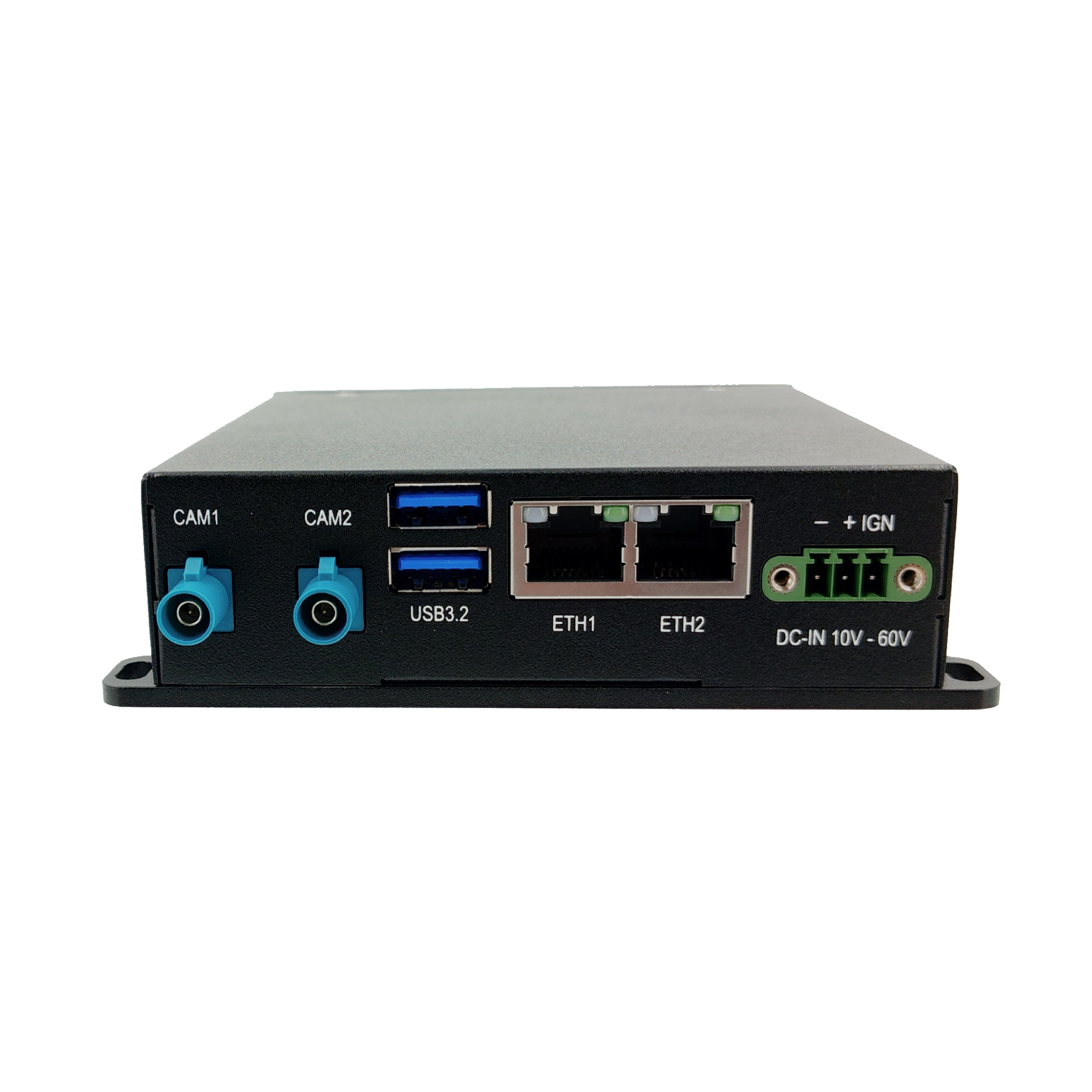

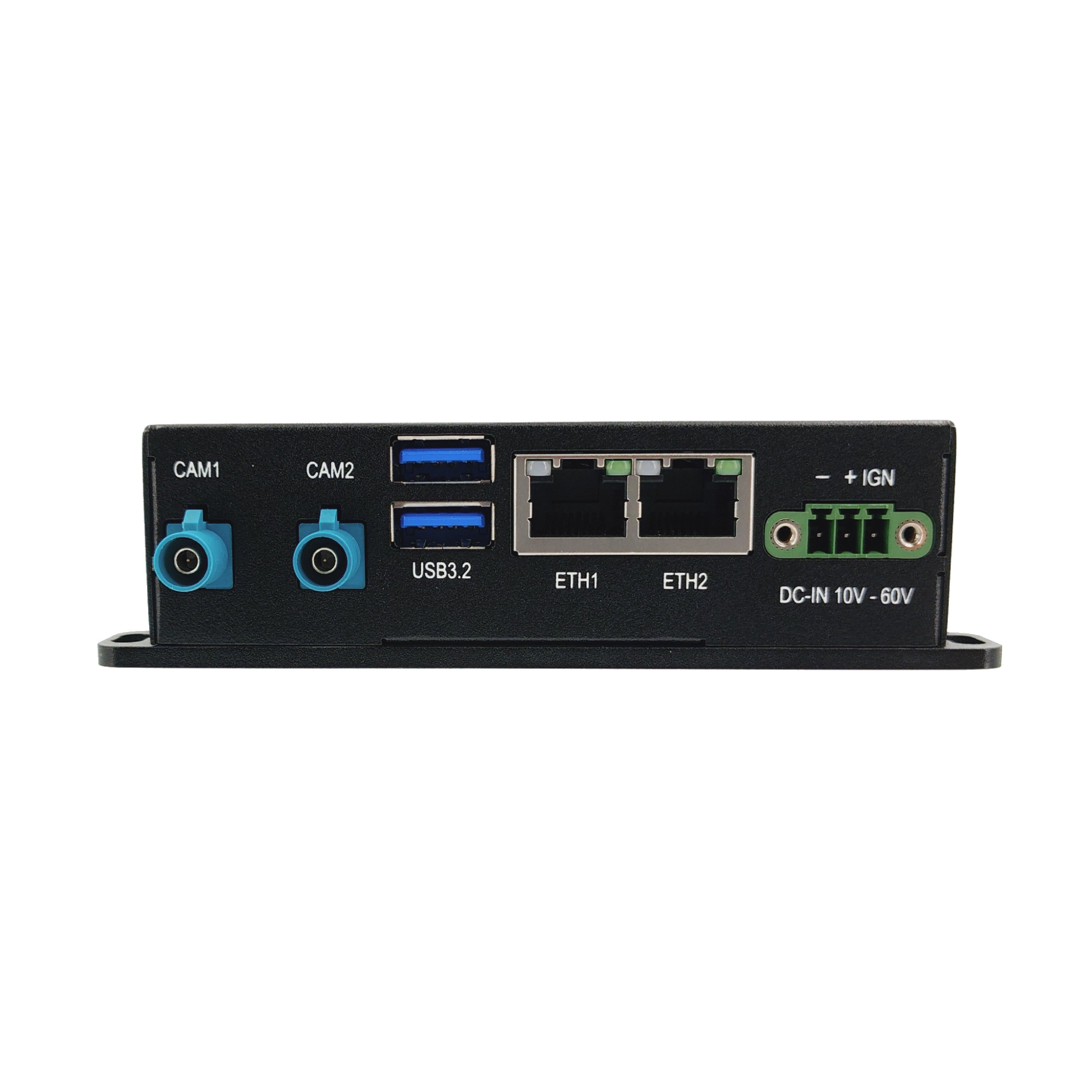

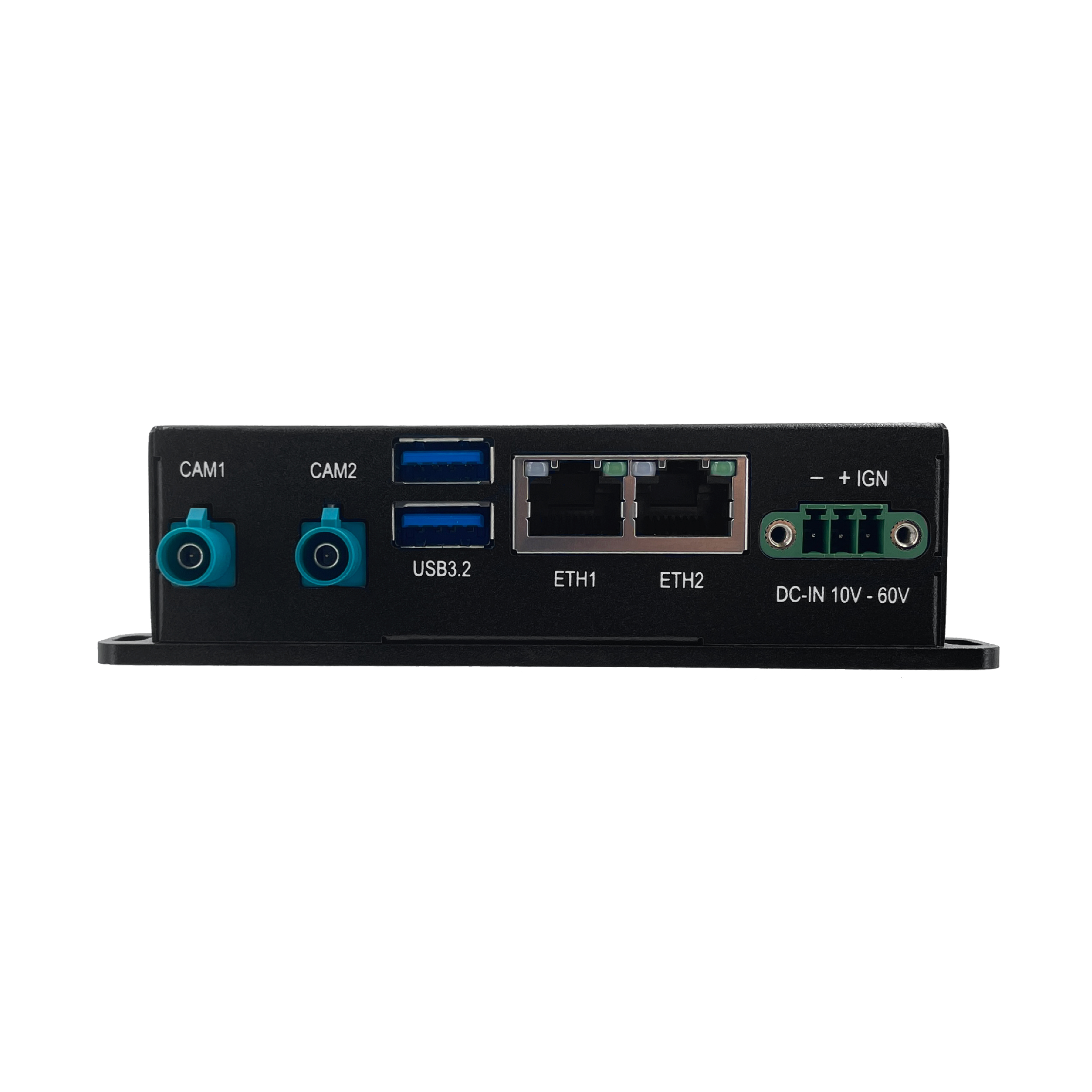

邊緣運算 AI 電腦

IBOX-604-G2

• NVIDIA® Jetson Orin™ NX 16GB
  (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB
  (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
• NVIDIA® Jetson Orin™ Nano 8GB
  (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5)

Platform Security Controller (PSC), Security Engine (SE)

Auto reset for unresponsive system

Built-in 3-axis accelerometer

• 1 x M.2 3042/3052 Key B for WWAN w/ dual SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT (For IBOX-604-G2W only)

1 x M.2 2242 Key M for NVMe SSD

DC 10-60V (nominal power input DC 11V/22V/58V) via 3-pin terminal block

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

Built-in RTC coin cell battery

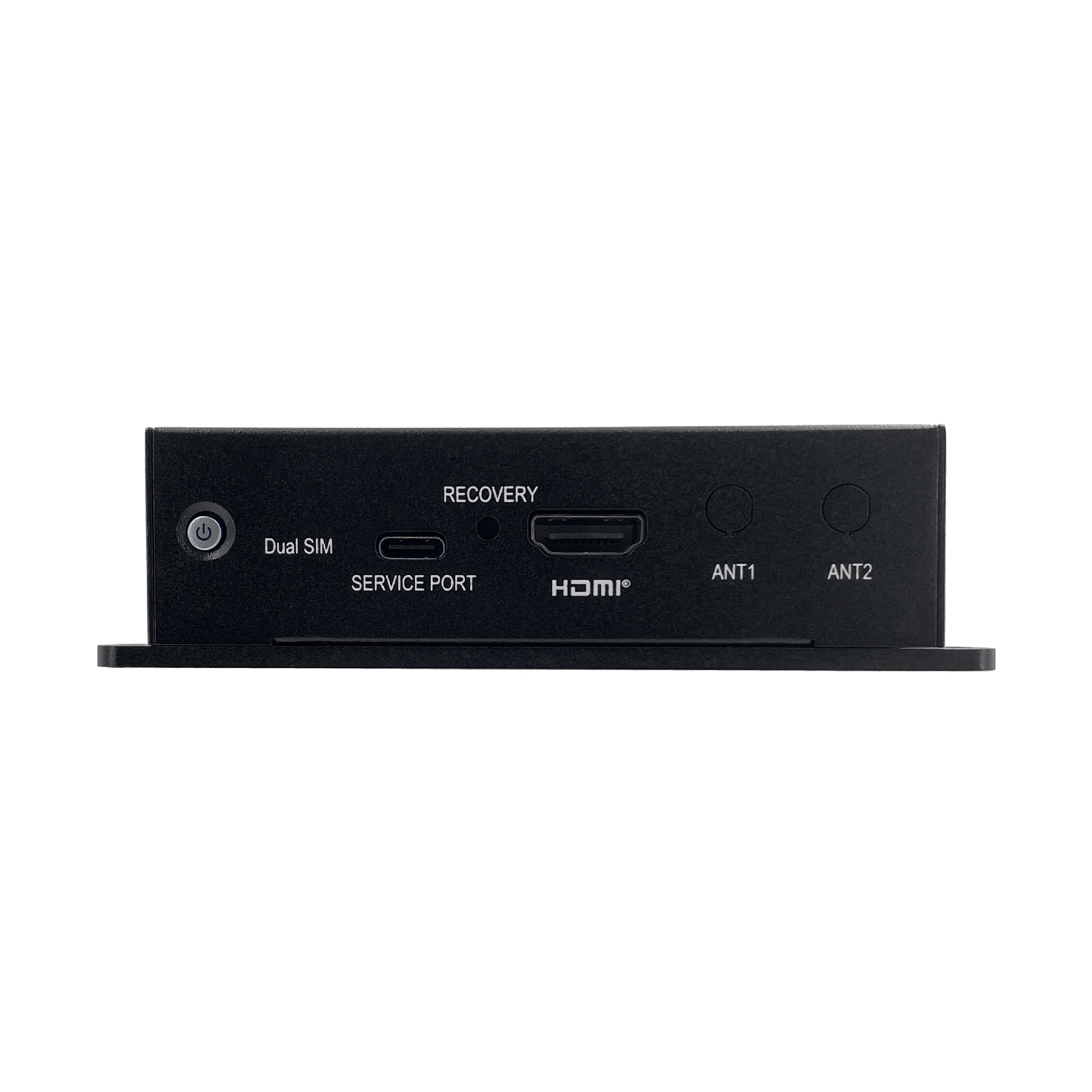

1 x HDMI® Type-A output

1 x HD audio output via HDMI®

• 1 x 2.5GbE (Intel® I226-IT) via RJ-45
• 1 x GbE (NVIDIA SoM) via RJ-45

2 x GMSL-2 via FAKRA

1 x CAN FD

2 x USB 3.2

1 x DI, 1 x DO, I2C (optional)

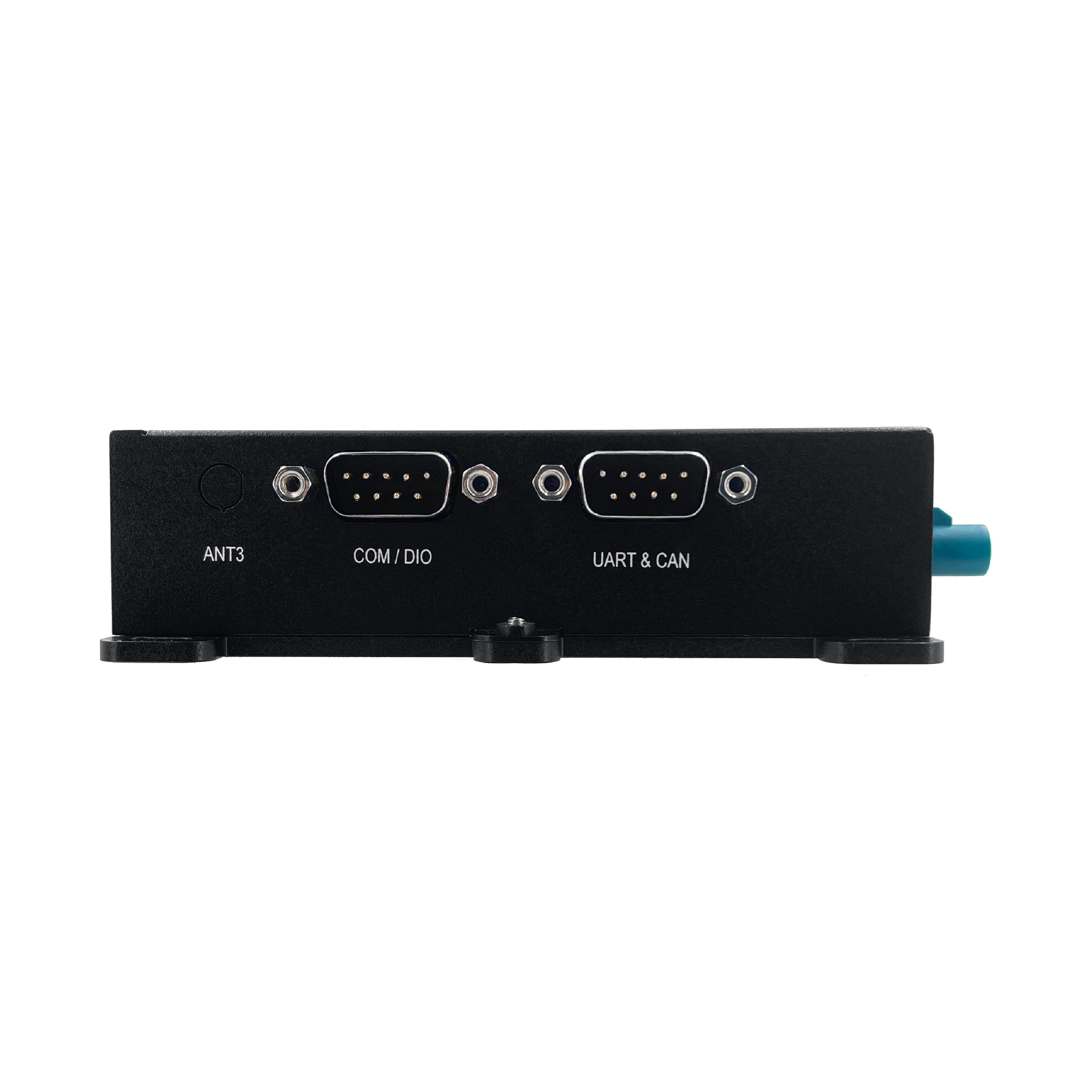

1 x UART w/ 3.3VDC (connector shared with CAN FD)

1 × RS-232/422/485

1 x USB type-C for system recovery (device only)

NVIDIA® JetPack 6.2 or above
(Jetson Linux and NVIDIA® development tools included)

-25°C ~ 50°C (-13°F ~ 122°F) with 0.6 m/s airflow
*Operating temperature varies by accessories installed.

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH ~ 90% RH (non-condensing)

• MIL-STD-810H, Method 514.8, Procedure I, Cat.4 (Operating)
• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810H, Method 516.8, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

Aluminum Alloy

3 x SMA connector mounting hole

Wall mounting

< 333 g (Excluding enclosure)
*Included enclosure w/o M.2 2230 slot (1 x SoM, 2 x DB-9 cable)

120 x 115 x 32 mm (4.73 x 4.53 x 1.26 in.)

• IBOX-604-G2-zzz (zzz=ONX16=Orin NX 16GB, zzz=ONX8=Orin NX 8GB
• IBOX-604-G2x-zzz (x=empty= w/o M.2 2230 slot, x=W=w/ M.2 2230 slot; zzz=ONX16=Orin NX 16GB,
  zzz=ONX8=Orin NX 8G, zzz=ON8=Orin Nano 8GB)

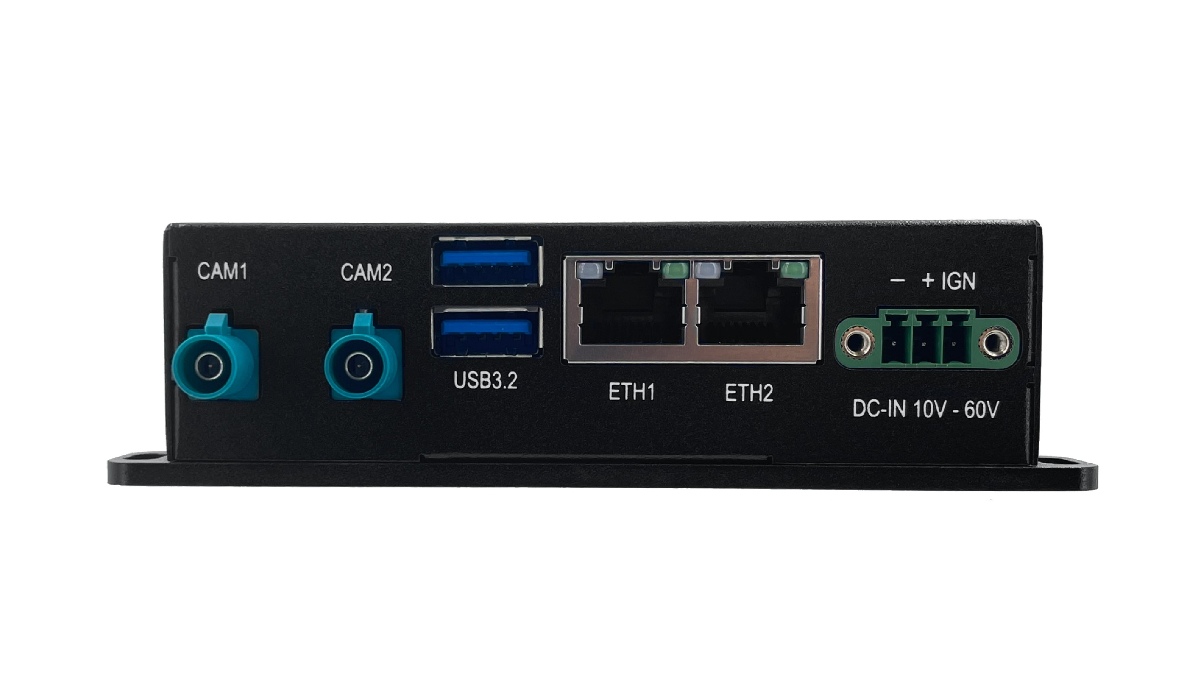

NVIDIA® Jetson Orin™ NX SoM w/ 2 x GMSL / 1 x CAN FD / 1 x UART Lightweight AI Drone Computer

Made in Taiwan

M.2 2242 Key M NVMe SSD -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C

AC/DC 100-240V/12V 60W C14 DC plug power adapter

Supported Camera List
