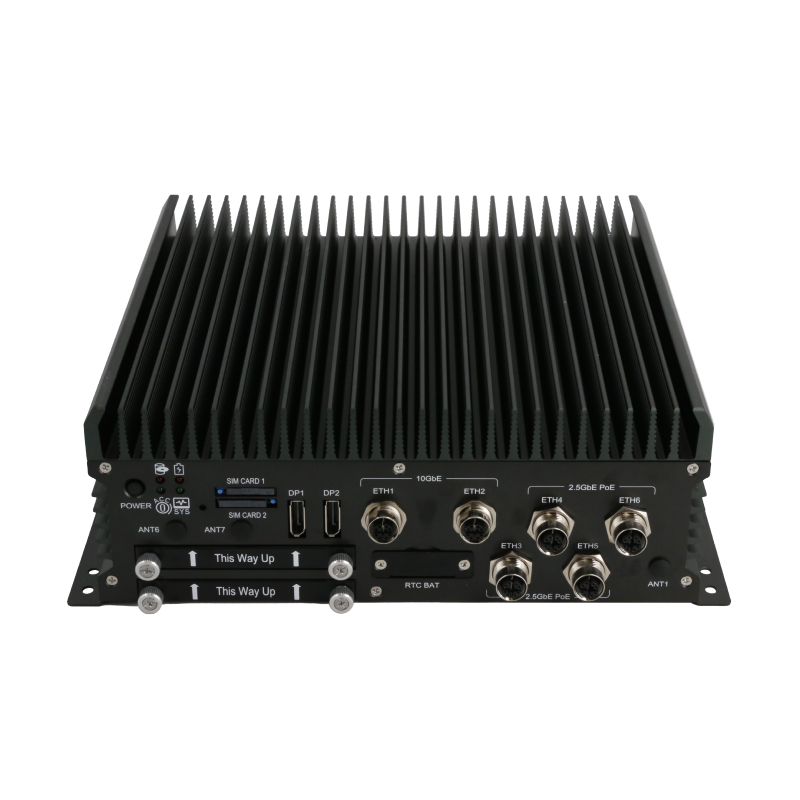

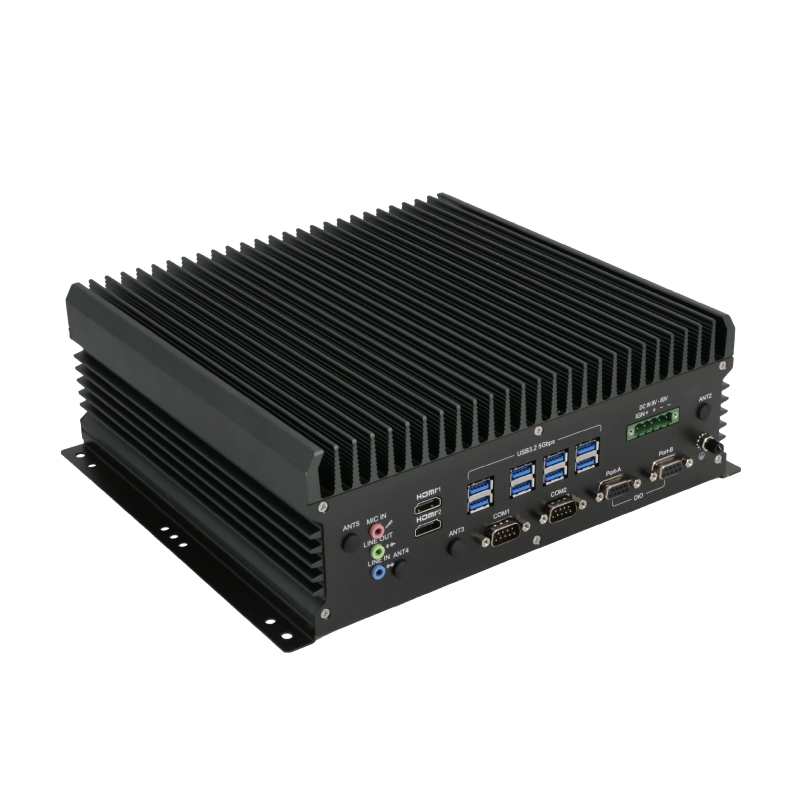

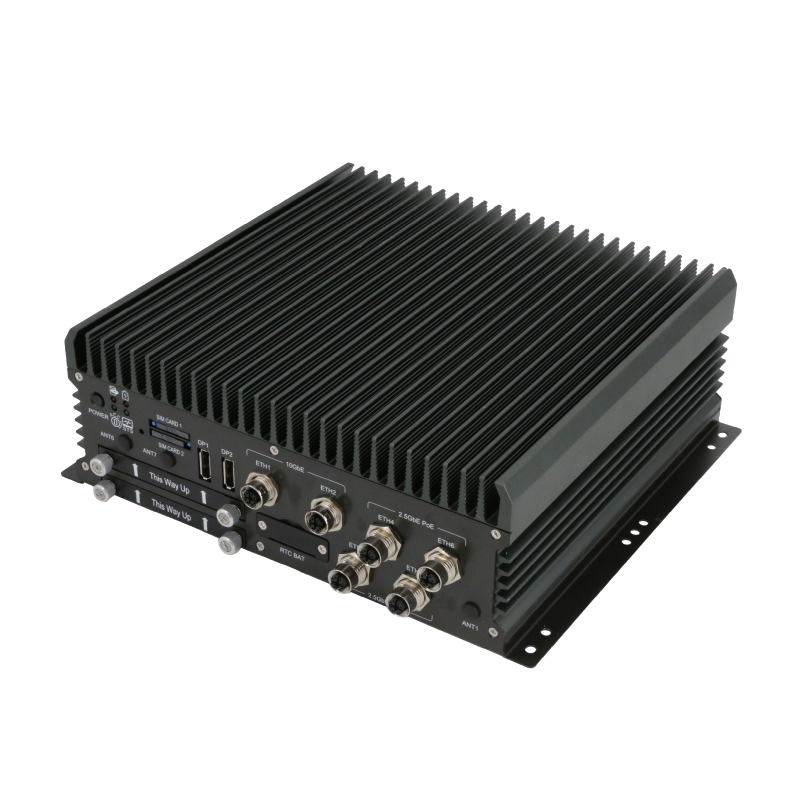

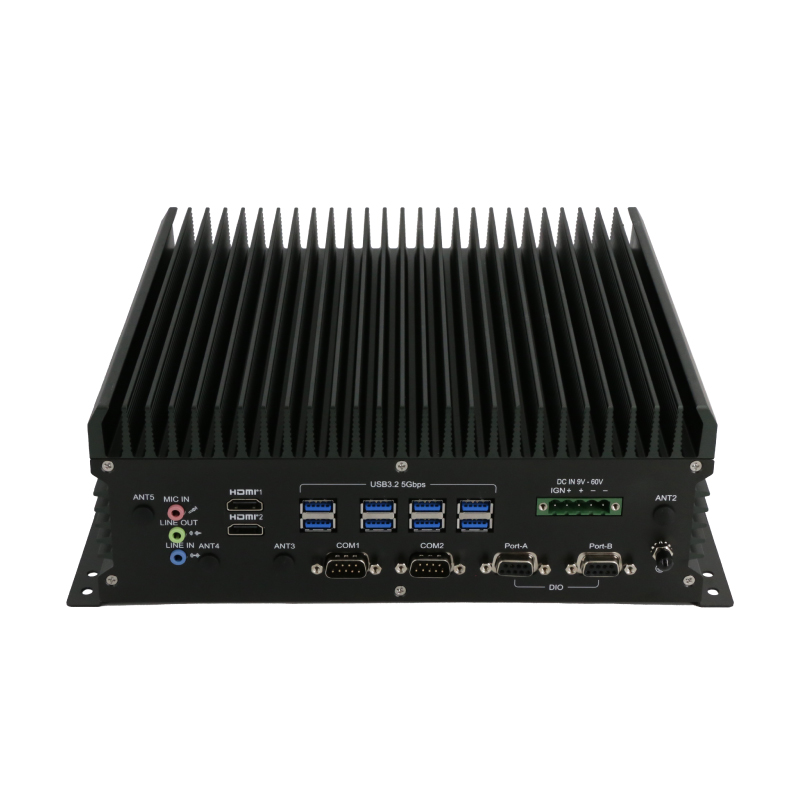

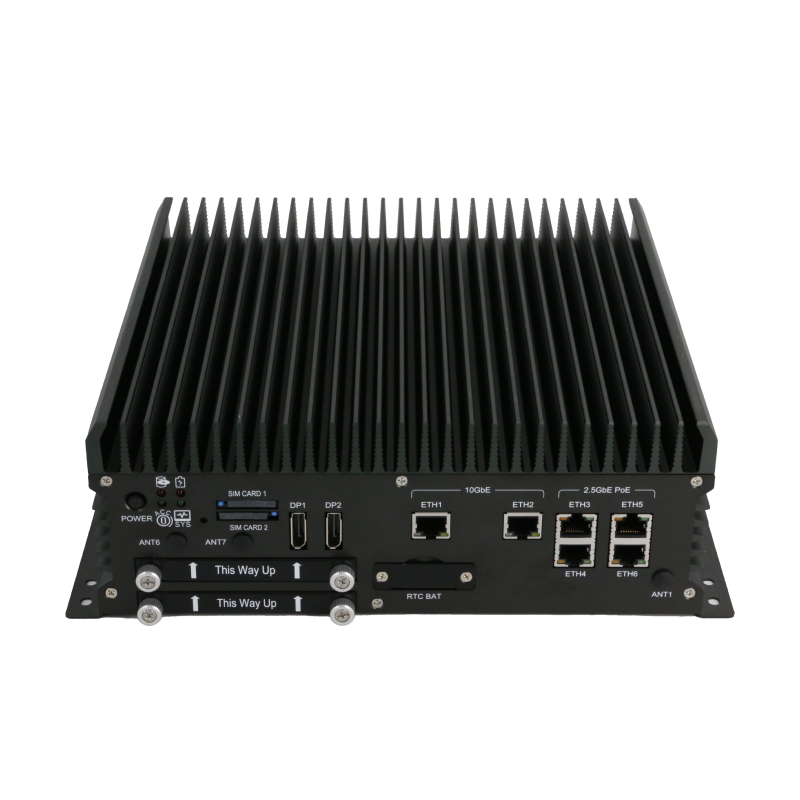

ABOX-5221(P)(G)

• Intel® Core™ (14th gen) i9-14900T 24C/32T processor
• Intel® Core™ (14th gen) i7-14700T 20C/28T processor
• Intel® Core™ (14th gen) i5-14500T 14C/20T processor

• Processor-integrated GPU – Intel® UHD Graphics 770
• Optional discrete GPU – NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada Intel® Arc™ A370E

R680E

2 x DDR5-5600 SO-DIMM up to 96GB
(ECC support with ECC DRAM)

TPM 2.0, dTPM

Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

• Without discrete GPU – 2 x HDMI® up to 3840 x 2160 @ 60Hz as specied in HDMI 2.0b
• With discrete GPU – Additional 2 x DP++ up to 7680 x 4320 @ 60Hz

1 x Line-out, 1 x Line-in, 1 x Mic-in

• 2 x 10GbE (Marvell AQC113) via RJ-45 (optional M12 X-code)
• 4 x 2.5GbE (Intel I226) via RJ-45 (optional PoE+ and M12 X-code)
* ETH3 supports Intel® AMT
** All Ethernet ports support PXE boot and Wake-on-LAN
*** PoE supports 25.5W per port with total power budget: 120W

8 x USB 3.2 Gen 2

8 x DI (DC 5-60V), 8 x DO (DC 5V/100mA)

2 × RS-232/422/485

• 1 x M.2 3042/3052 Key B for WWAN with dual SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT
* Thermal solution is required for M.2 5G module

2 x Mini PCIe (full-size)

• 1 x M.2 2280 Key M for NVMe/SATA SSD
• 2 x M.2 2280 Key M for NVMe SSD
• 2 x Removable tray for 2.5″ SATA SSD
* RAID 0/1/5 support via Intel® VMD.

• DC 9-60V input (nominal power input DC 12V/24V/48V) via 5-pin terminal block
* Nominal power input of DC 24V or above is required for system with discrete GPU and PoE

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

Front removeable tray for RTC coin cell battery

• Optional battery kit for up to 10 minutes emergency backup time
(Battery charging Temp. 0°C~45°C and discharging Temp. -10°C~60°C)
* BBU backup time varies depending on actual overall system power consumption
and battery is required to be charged before being used for system power backup
** Operating temperature will be limited within -10°C and 60°C with the battery kit installed.
Patent No.: M447854 (Built-in battery)

• Windows 11 IoT Enterprise LTSC
• Ubuntu 22.04 LTS

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airow
* Operating temperature varies by accessories installed.

-40°C ~ 85°C (-40°F ~ 176°F)

10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G (Z) 0.21G (Y) 0.76 (Z)@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Category 4
• EN 61373:2010, Clause 8

• MIL-STD-810H, Method 516.8, 20G (11ms)
• EN 61373:2010, Clause 10

CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25), IEC 62368-1

Aluminum Alloy

7 x SMA connector mounting hole

Wall mounting

5.70 kg (12.57 lb)

290 x 250 x 98 mm (11.42 x 9.84 x 3.86 in.) with mounting brackets

IP40

ABOX-5221(P)(G)(-M12X)-zz (P= w/ PoE, G=w/ Discrete GPU, M12X=w/ M12 X-coded connectors,
zz=i9=i9-14900T, zz=i7=i7-14700T, zz=i5=i5-14500T

Intel® Core™ Processors (14th Gen) with Discrete GPU Options and High-Bandwidth 10GbE Edge AI Computer

Made in Taiwan

*AI TOPS Precision – FP8 for NVIDIA RTX™ Embedded Ada Generation, INT8 for Intel® Arc™.

DDR5-5600 SO-DIMM, 8GB to 48GB, -40°C ~ 85°C (ECC option available)

M.2 2280 Key M NVMe SSD w/ thermal kit, -40°C ~ 85°C
M.2 2280 Key B-M SATA SSD w/ thermal kit, -40°C ~ 85°C
2.5″ SATA SSD, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C
Mini PCIe GNSS module, -40°C ~ 85°C

Mini PCIe CAN module, -40°C ~ 85°C

BAT-5200 battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C ~ 60°C

AC/DC 100-240V/24V 280W C14 bare wire power adapter
