ABOX-5221(P)(G)

• Intel® Core™ (14th gen) i9-14900T 24C/32T processor

• Intel® Core™ (14th gen) i7-14700T 20C/28T processor

• Intel® Core™ (14th gen) i5-14500T 14C/20T processor

• Processor-integrated GPU – Intel® UHD Graphics 770
• Optional discrete GPU:
 NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada
Intel® Arc™ A370E

R680E

2 x DDR5 SO-DIMM supports up to 5600 MT/s 96GB (ECC support with ECC DRAM)

TPM 2.0

Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

• Without discrete GPU
– 2 x HDMI® with maximum resolution support of 3840 x 2160 @ 60Hz as specified in HDMI 2.0b

• With discrete GPU
– Additional 2 x DP 1.4 (maximum resolution: 7680 x 4320 @ 60Hz)

• 1 x Line-out, 1 x Line-in, 1 x Mic-in

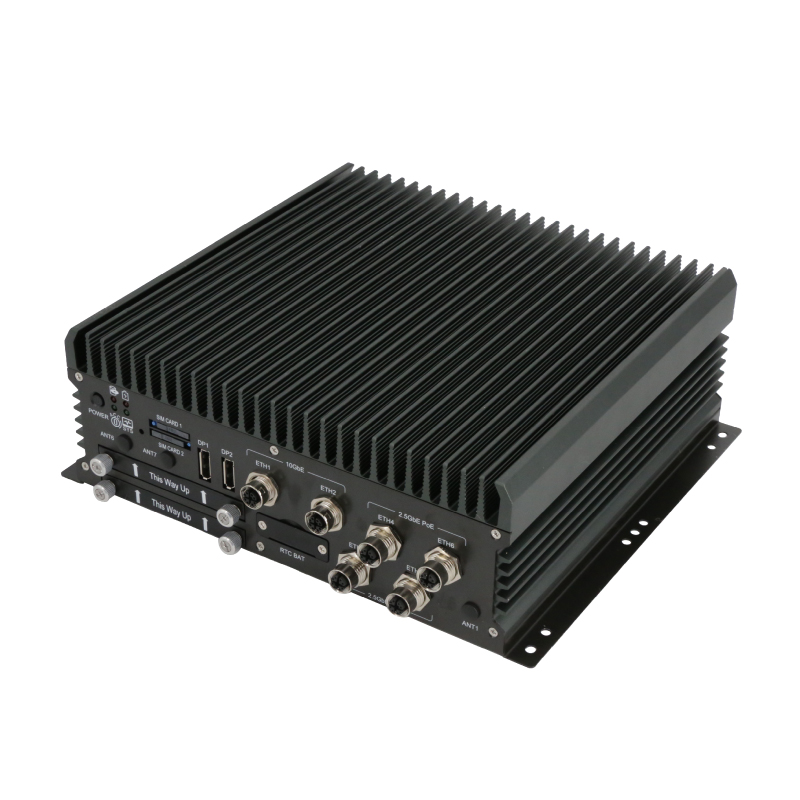

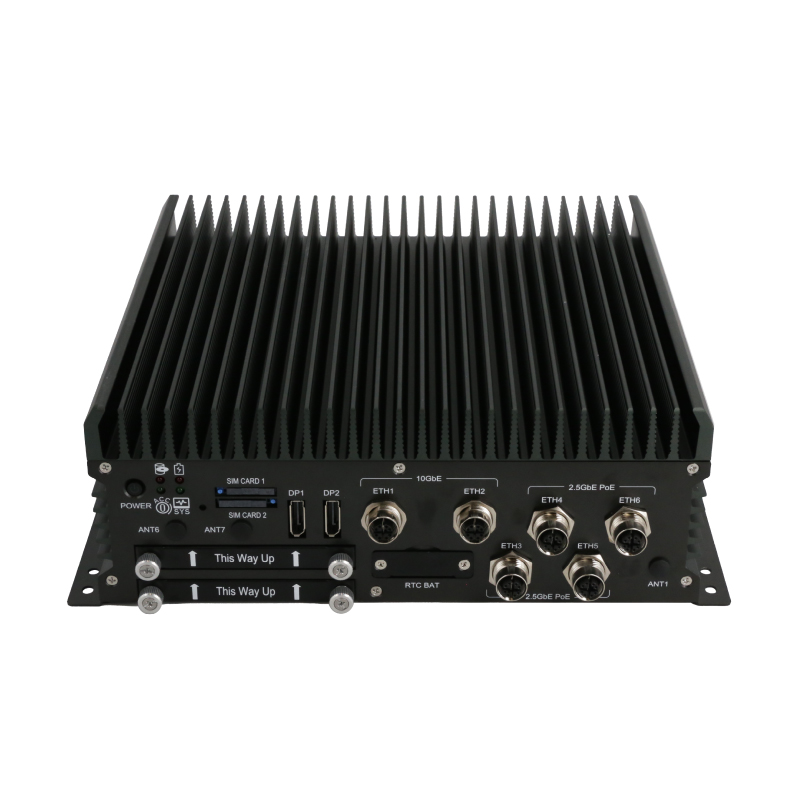

• 2 x 10GbE (Marvell AQC113) via RJ-45 (optional M12 X-code)

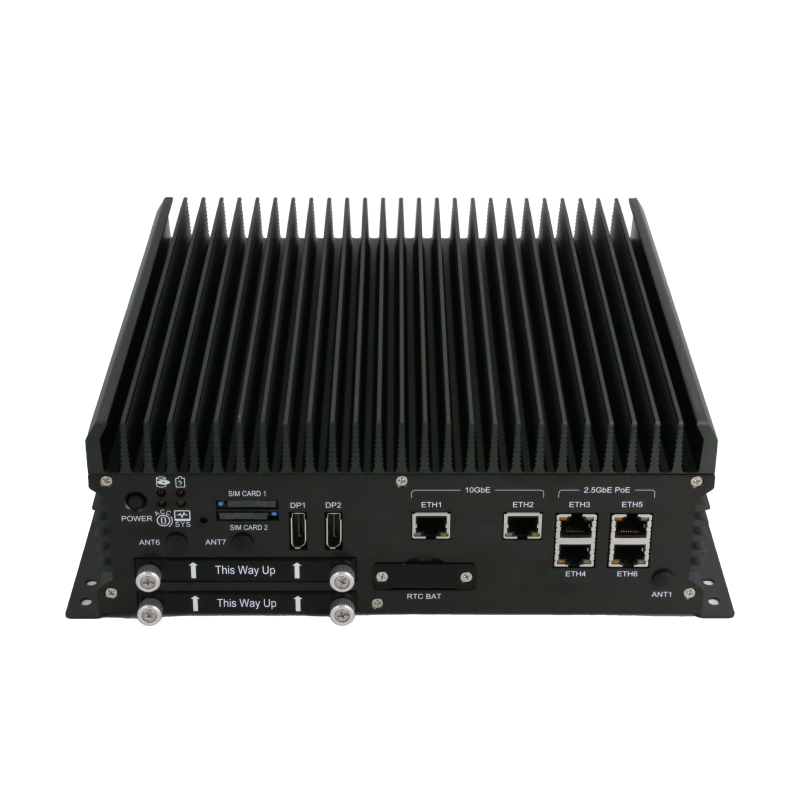

• 4 x 2.5GbE (Intel I226IT) via RJ-45 (optional PoE+ and M12 X-code)

** PoE supports 25.5W per port with total power budget: 120W

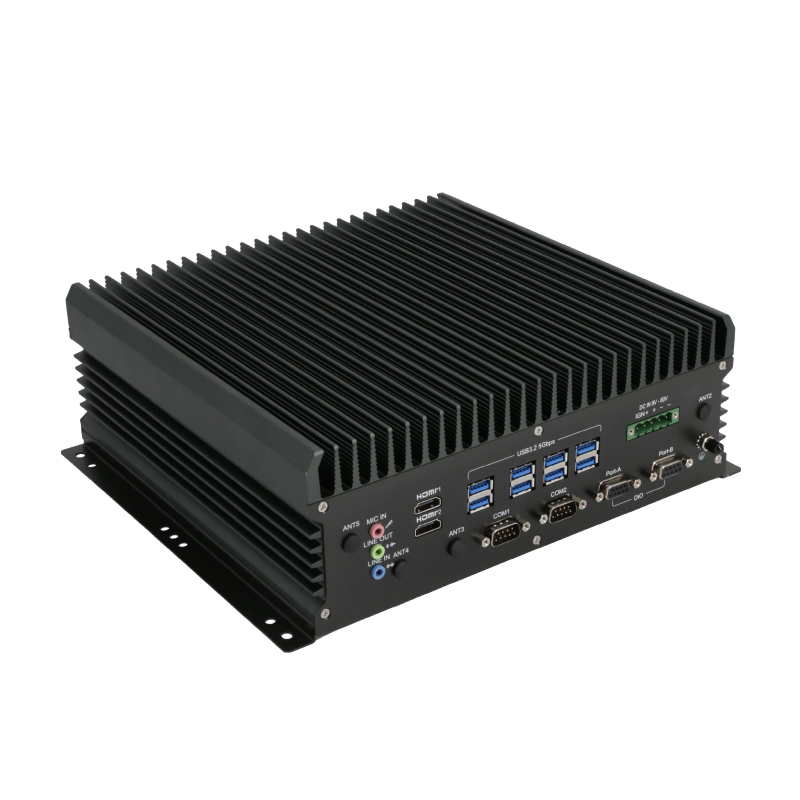

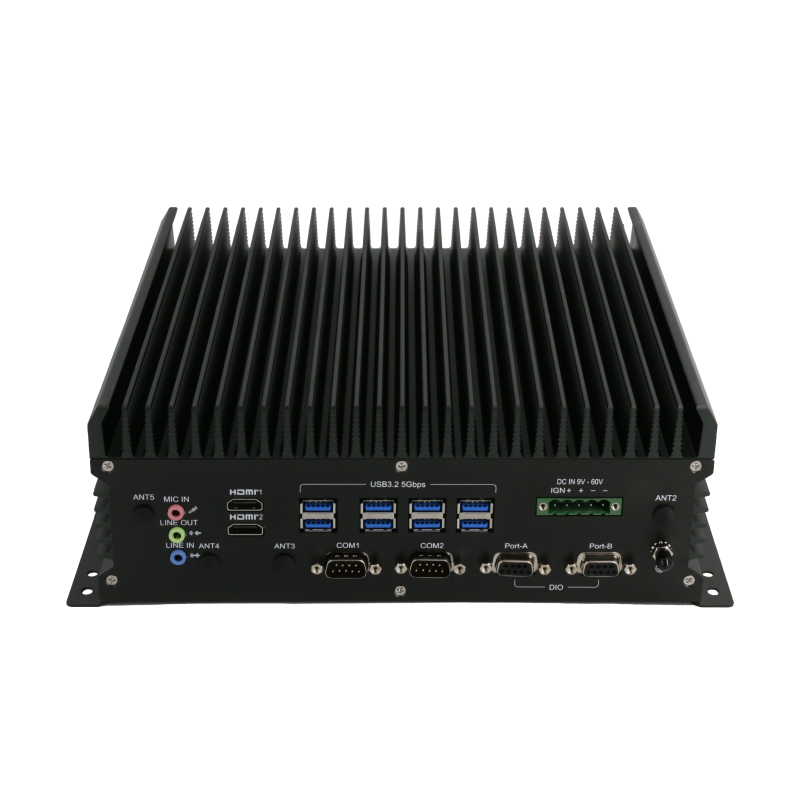

• 8 x USB 3.2 Gen 2

• 8 x DI (DC 9-60V), 8 x DO (DC 5V/100mA)

2 x  RS-232/422/485

• 1 x M.2 3042/3052 Key B for WWAN with dual SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT * Thermal solution is required for M.2 5G module

2 x Mini PCIe (full-size)

• 1 x M.2 2280 Key M for NVMe/SATA SSD

• 2 x M.2 2280 Key M for NVMe SSD

• 2 x front removeable tray for 2.5″ SATA SSD

* PCIe RAID and SATA RAID are supported by Intel® VMD and RST

• DC 9-60V input (nominal power input DC 12V/24V) via 5-pin terminal block

• OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

Front removeable tray for RTC coin cell battery

• Optional battery kit for up to 10 minutes emergency backup time

(Battery charging Temp. 0°C~45°C and discharging Temp. -10°C~60°C)

* UPS backup time varies depending on actual overall system power consumption

and battery is required to be charged before being used for system power backup

** Operating temperature will be limited within -10°C and 60°C with the battery kit installed.

Patent No.: M447854 (Built-in battery)

• Windows 11 IoT Enterprise LTSC

• Ubuntu 22.04 LTS

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
* Operating temperature varies by accessories installed.

-40°C ~ 85°C (-40°F ~ 176°F)

• 10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

• MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I,

trucks and semi-trailers=15G (11ms)

CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25)

Aluminum Alloy

7 x SMA connector mounting hole

Wall

5.70 kg (12.57 lb)

290 x 250 x 98 mm (11.42 x 9.84 x 3.86 in.)

IP40

ABOX-5221(P)(G)(-M12X)-zz (P= w/ PoE, G=w/ Discrete GPU, M12X=w/ M12 X code connectors,

zz=i7=i7-14700T, zz=i5=i5-14500T, zz=i3=i3-14100T

Intel® Core™ Processors (14th Gen) with Discrete GPU Options and High-Bandwidth 10GbE Edge AI Computer

Made in Taiwan

*AI TOPS Precision – FP8 for NVIDIA RTX™ Embedded 5000 Ada Generation, INT8 for Intel® Arc™.

DDR5-5600 SO-DIMM, 8GB to 48GB, -40°C ~ 85°C (ECC option available)

M.2 2280 Key B-M NVMe SSD w/ thermal kit, -40°C ~ 85°C
M.2 2280 Key B-M SATA SSD w/ thermal kit, -40°C ~ 85°C
2.5″ SATA SSD, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 Key B 3042/3052 WWAN module w/ thermal kit, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C
Mini PCIe GNSS module, -40°C ~ 85°C

Mini PCIe CAN module, -40°C ~ 85°C

BAT-5200 battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C ~ 60°C

AC/DC 24V power adaptor
