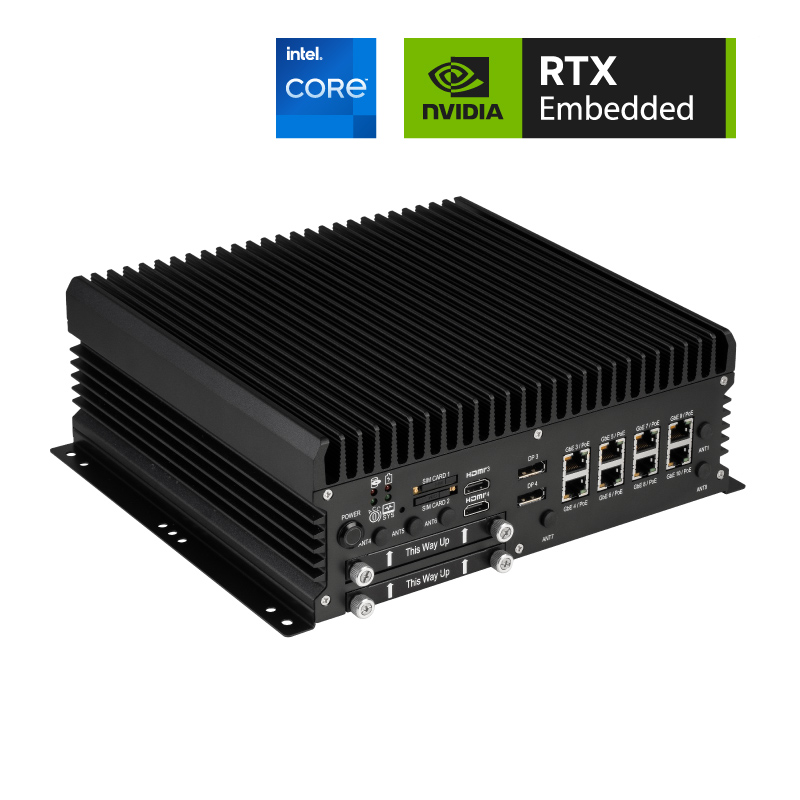

ABOX-5220(P)(G)

• Intel® Core™ (14th gen) i9-14900T 24C/32T processor
• Intel® Core™ (14th gen) i7-14700T 20C/28T processor
• Intel® Core™ (14th gen) i5-14500T 14C/20T processor

• Processor-integrated GPU – Intel® UHD Graphics 770
• Optional discrete GPU – NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada Intel® Arc™ A370E

R680E

2 x DDR5-5600 SO-DIMM up to 96GB
(ECC support with ECC DRAM)

TPM 2.0, dTPM

Auto reset for unresponsive system
(custom 1-255 sec/min settings in BIOS)

• Without discrete GPU –
2 x DP++ up to 7680 x 4320 @ 60Hz
2 x HDMI® up to 3840 x 2160 @ 60Hz as specied in HDMI 2.0b
• With discrete GPU –
Additional 2 x DP++ up to 7680 x 4320 @ 60Hz
Additional 2 x HDMI® up to 3840 x 2160 @ 60Hz as specied in HDMI 2.0b
* DP 4 port not supported when equipped with NVIDIA RTX™ Embedded 2000 Ada

1 x Line-out, 1 x Line-in, 1 x Mic-in

• 2 x 2.5GbE (Intel I226) via RJ-45
• 8 x GbE (Intel I210) via RJ-45 (optional PoE+ and M12 X-code)
* 2.5G port 1 supports Intel® AMT
** All Ethernet ports support PXE boot and Wake-on-LAN
** PoE supports 25.5W per port with total power budget: 120W

8 x USB 3.2 Gen 2

8 x DI (DC 5-60V), 4 x DO (DC 5V/100mA)

2 x ADC (DC 0-60V)

4 × RS-232/422/485

• 2 x M.2 3042/3052 Key B for WWAN w/ dual SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT
* Thermal solution is required for M.2 5G module.

2 x Mini PCIe (full-size)

• 1 x M.2 2280 Key M for NVMe/SATA SSD
• 2 x M.2 2280 Key M for NVMe SSD
• 2 x Removable tray for 2.5″ SATA SSD
* RAID 0/1/5 support via Intel® VMD.

• DC 9-60V (nominal power input DC 12V/24V/48V) via 5-pin terminal block
* Nominal power input of DC 24V or above is required for system with discrete GPU and PoE

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

• Optional battery kit for up to 10 minutes emergency backup time
(Battery charging Temp. 0°C ~ 45°C and discharging Temp. -10°C ~ 60°C)
* BBU backup time varies depending on actual overall system power consumption
and battery is required to be charged before being used for system power backup.
** Operating temperature will be limited within -10°C and 60°C with
the battery kit installed.
Patent No.: M447854 (Built-in battery)

• Windows 11 IoT Enterprise LTSC
• Ubuntu 22.04 LTS

• -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airow
* Operating temperature varies by accessories installed.

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH ~ 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G (Z) 0.21G (Y) 0.76 (Z)@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Category 4
• EN 61373:2010, Clause 8

• MIL-STD-810H, Method 516.8, 20G (11ms)
• EN 61373:2010, Clause 10

CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25), IEC 62368-1

Aluminum Alloy

8 x SMA connector mounting hole

Wall mounting

5.70 kg (12.57 lb)

290 x 250 x 98 mm (11.42 x 9.84 x 3.86 in.) with mounting brackets

IP40

ABOX-5220(P)(G)(-M12X)-zz (P= w/ PoE, G=w/ Discrete GPU,
M12X=w/ M12 X-coded connectors, zz=i9=i9-14900T, zz=i7=i7-14700T, zz=i5=i5-14500T

Intel® Core™ Processors (14th Gen) with Discrete GPU Options and High Expandability Edge AI Computer

Made in Taiwan

*AI TOPS Precision – FP8 for NVIDIA RTX™ Embedded Ada Generation, INT8 for Intel® Arc™.

DDR5-5600 SO-DIMM, 8GB to 48GB, -40°C ~ 85°C (ECC option available)

M.2 2280 Key M NVMe SSD w/ thermal kit, -40°C ~ 85°C
M.2 2280 Key B-M SATA SSD w/ thermal kit, -40°C ~ 85°C
2.5″ SATA SSD, -40°C ~ 85°C

M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 Key B WWAN module w/ thermal kit, -40°C ~ 85°C

M.2 2242 Key B GNSS module, -40°C ~ 85°C
Mini PCIe GNSS module, -40°C ~ 85°C

Mini PCIe CAN module, -40°C ~ 85°C

BAT-5200 battery kit, charging Temp. 0°C ~ 45°C, discharging Temp. -10°C ~ 60°C

AC/DC 100-240V/24V 280W C14 bare wire power adapter
