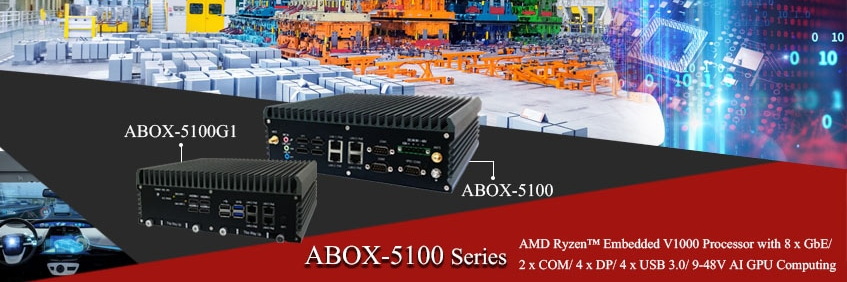

AMD RyzenTM Embedded V1000 Processor w/ 8 x GbE/ 2 x COM/ 4 x DP/ 4 USB 3.0/ 9-48V Input AI GPU Computing
產品特色
產品介紹

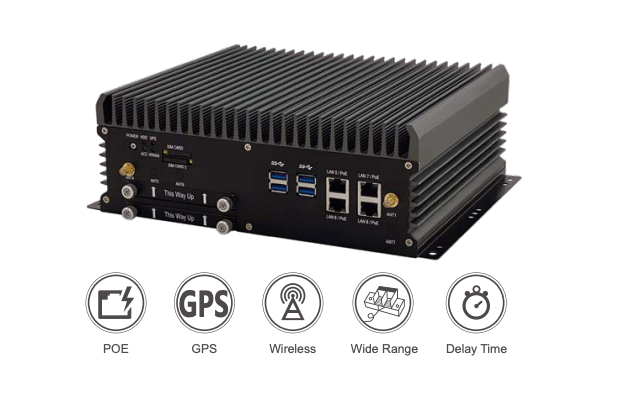

The ABOX-5100(P) is powered by AMD Ryzen Embedded V1000 Processor with 8 x GbE/ 2 x COM/ 4 x DP/ 4 x USB 3.0/ 9-48V Fanless Box Computer. ABOX-5100(P) provides the Dual Hot Swappable SATA Storage RAID 0,1,5, which provides more flexibility for hardware maintenance and expansion. These computers can be operated in extreme weather conditions (operating temperature: -40C ~ 70 C) and can be adapted to various industrial requirements such as Smart Patrol, Smart Factory Automation Control System, Surveillance System as well as Visual Management System such as Automatic License Plate Recognition, Mining Machines, and Vision Control System.
SYSTEM
Processor
AMD RyzenTM V1807B Quad Core Soc (3.3~3.6GHZ)
Memory
2 x DDR4 2400 MHz SO-DIMM up to 32GB
Watchdog
1 ~ 255 Level Reset
TPM
2.0
GRAPHICS
Graphics Engine
AMD Next-generation Graphics Core and Multimedia Vega GPU with up to 11 Compute Units H.2651 (10-bit) Decode & (8-bit) Encode, VP9 Decode Up to 4x DisplayPort 1.4
DisplayPort
4
Resolution
Max Resolution (DP) : 4096×2304@60Hz
AUDIO
Line-out
1
Mic-in
1
Line-in
1
ETHERNET
LAN Chipset
Intel i210AT x 2 to LAN Switch Marvell 88E6176-A1 x 2
LAN
8 x RJ45 GbE by 2 x Switch Design (MAC x 2)
PoE
Optoinal PoE for the 8 Ports 100W max.
I/O
Serial Port
3 x RS-232/422/485 (Optional Max 4 x RS-232/422/485)
USB
4 x USB 3.0 Ports
DIO
8 x GPI and 4 x GPO
SIM Socket
2 x SIM Card Sockets for 3G/LTE
STORAGE
Type
2 x 2.5” Drive Bay for SATA Type HDD/SSD
EXPANSION
Mini PCI Express
3 x Full Mini-PCle Slots
M.2
1x M.2 A-E Key 2230 slot
POWER
Power Input
9V – 48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power Off Control
Power off Delay Time Setting by BIOS and Software
Backup Battery Solution
Internal Battery Kit for 10 Mins Operating (optional)
*UPS backup time varies depending on actual overall system power consumption.
MECHANICAL
Dimensions
260(L) x 226(W) x 95(H) mm
Weight
5220g (Barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 70°C
* CPU configure at 25W, ambient w/ 0.6m/s airflow
Storage Temp.
-40°C ~ 80°C
Vibration & Shock
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
CERTIFICATION
Certifications
CE, FCC Class A, E-Mark
OPERATIONAL SYSTEM
Windows
Win10 LTSC 1809
Linux
Ubuntu 18.04 64bit
ORDERING INFORMATION
Model No.
ABOX-5100-V1807
ABOX-5100 P-V1807 (with PoE)
Description
AMD RyzenTM Embedded V1000 Processor w/ 8 GbE/2 COM/ 9-48V Input AI GPU Computing
State of Origin
Made in Taiwan
OPTIONAL ACCESSORIES
DRAM
SO-DIMM max.DDR4-2400,4GB~32GB,0~70C/-40°C~85°C
SATA SSD
2.5inch MLC/TLC 64GB~1TB 0~70C/-40°C~85°C
Wifi
WiFi M.2 2230 A-E key module
Modem
LTE mini PCIe card
GPS
GPS miniPCIe card
CANBUS
CANBUS mini PCIe card
Battery backup kit
BAT-5200 kit, 5200mA/h, -30°C~60°C, discharge -20°C~60°C, operating about 10 mins.
Power adapter
AC/DC 220W/24Vor 280W/24V power adapter
