AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 2 x GbE PoE / 2 x COM / DC-IN 9-36V / IP66 Waterproof Computer
• AMD Ryzen™ Embedded R2312 2C/4T Processor
• 2 x HDMI® Supports Resolution Specified in HDMI 2.0b
• 2 x GbE w/ PoE
• 2 x COM
• 1 x M.2 2280 Key M Supports NVMe and SATA
• 1 x M.2 3042/52 Key B Supports USB 3.2
• 1 x M.2 2230 Key E Supports PCIe and USB2.0
• 9V – 36V DC Input
• IP66 Enclosure for Harsh Environment
AMD Ryzen™ Embedded R2312 2C/4T Processor
CPU Built-in Graphics AMD Radeon™ Graphics
1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)
TPM 2.0
System reset 1 ~ 255 sec. or min. settings in BIOS

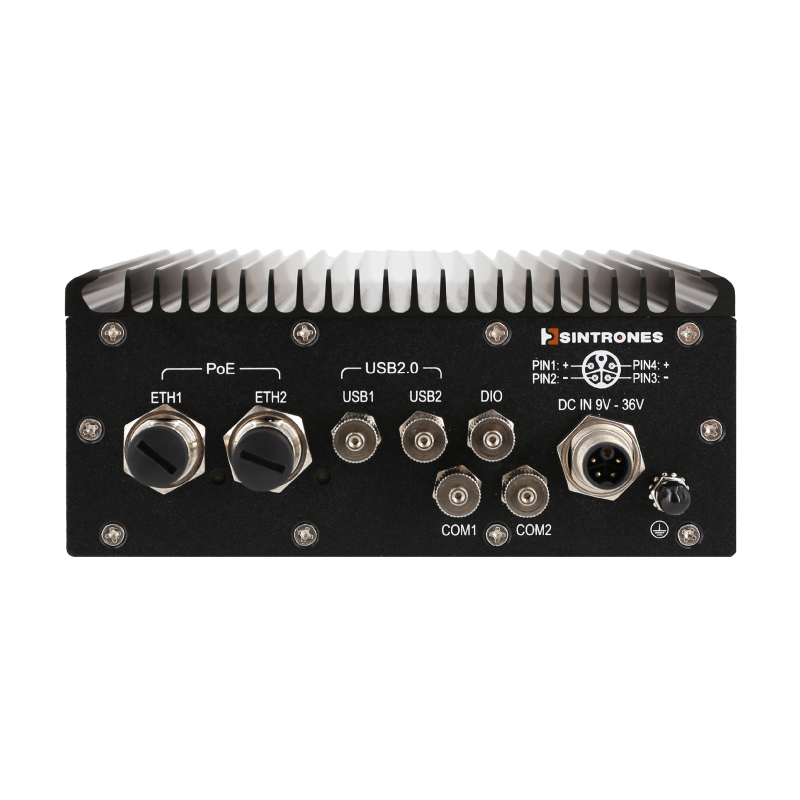

2 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via M12 X Code
* Share with 1GbE bandwidth; Power budget: 30W

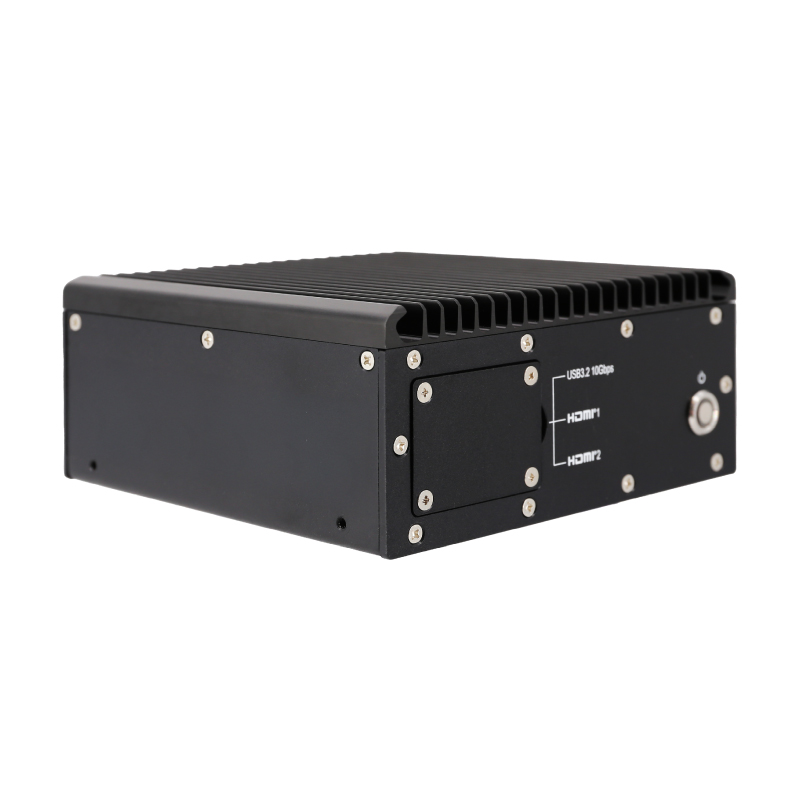

• 2 x USB 3.2 Gen 2 (10Gbps) w/o IP66
• 2 x USB 2.0 w/ M8 A Code
3 x DI (9-36VDC), 4 x DO (5V, 100mA) w/ M8 A Code
2 x RS-232/422/485 w/ M8 A Code
• 1 x M.2 3042/52 Key B supports USB 3.2 for WWAN w/ Dual SIM
• 1 x M.2 2230 Key E supports PCIe and USB 2.0 for Wi-Fi/BT
1 x M.2 2280 Key M supports NVMe or SATA SSD
DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V)
Over voltage and reverse polarity protection
• Windows 10 IoT Enterprise 64bit LTSC
• Windows 11 IoT Enterprise
• Ubuntu 20.04 LTS 64bit
• Ubuntu 22.04 LTS 64bit
-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)
-40 ~ 80°C
10 ~ 90% @ 40°C (non-condensing)
CE, FCC Class A, UKCA
Aluminum Alloy
Wall-mounting
2.000g (barebone)
150(L) x 150(W) x 66(H) mm
SBOX-2624P-IP66
AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 2 x GbE PoE / 2 x COM / DC-IN 9-36V / IP66 Waterproof Computer
Made in Taiwan
DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)
M.2 2280 Key M NVMe TLC -40~85°C 512GB~2TB
M.2 2280 Key M SATA TLC -40~85°C 128GB~2TB
M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module
M.2 3042/52 5G/LTE modem
M.2 2242 GPS module
